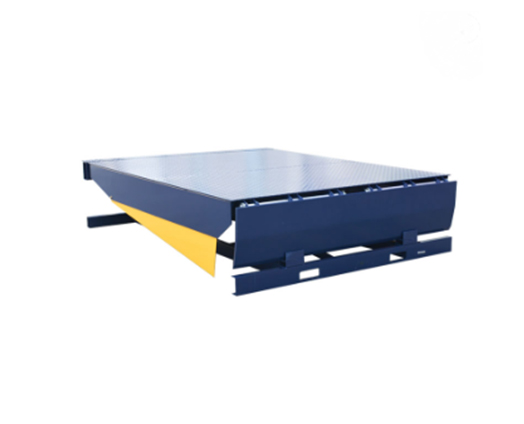

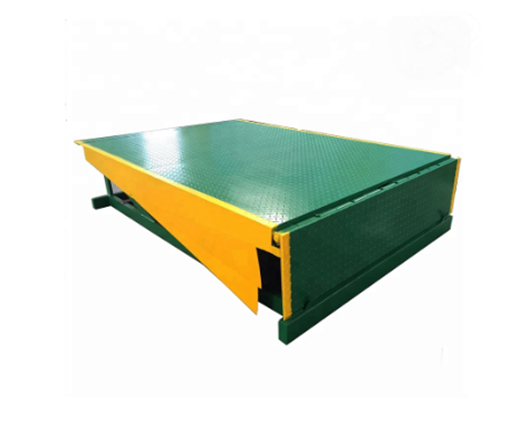

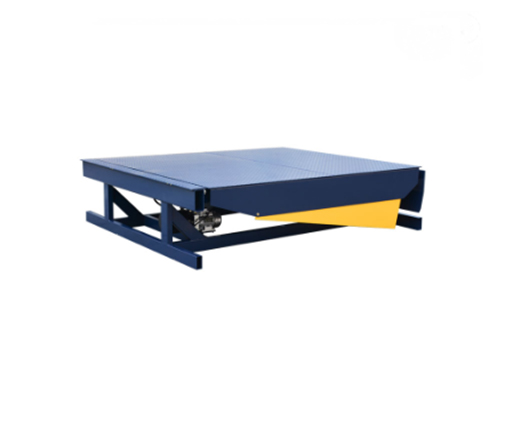

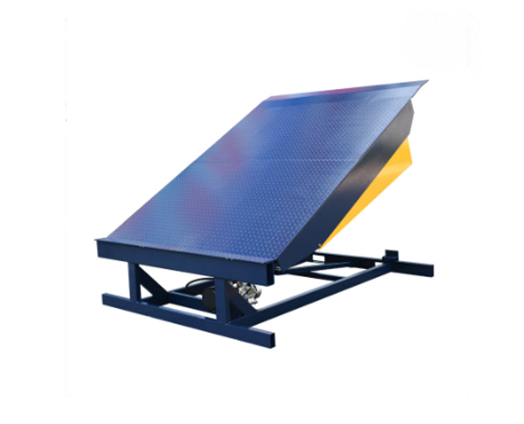

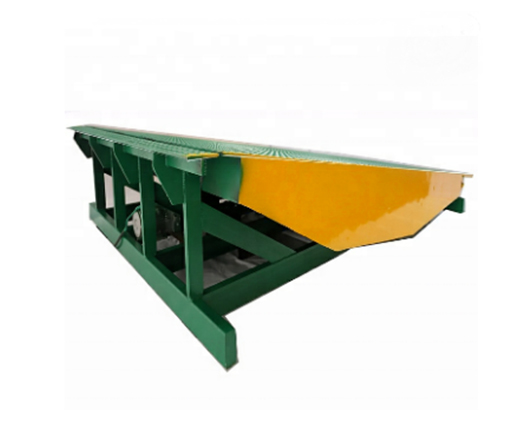

Hydraulic boarding bridge is a special auxiliary equipment to realize rapid loading and unloading of goods. It’s height adjustment function enables a bridge to be erected between the truck and the warehouse platform. Forklift trucks and other handing vehicles can directly drive into the truck to Carry out bulk loading and unloading of goods, which can be achieved by single operation.
(1) Full hydraulic drive, easy operation and reliable operation.

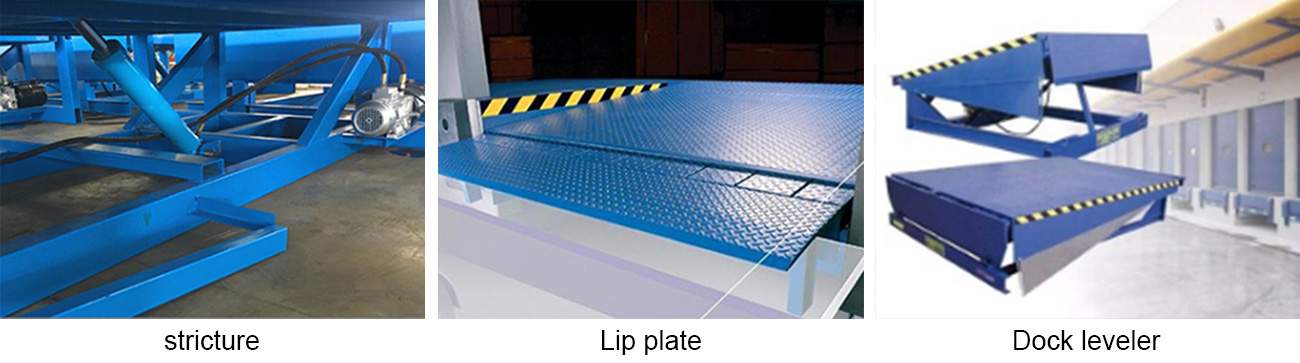

(2) The lip plate and the platform are connected by a whole long axis, which has high strength and good reliability.

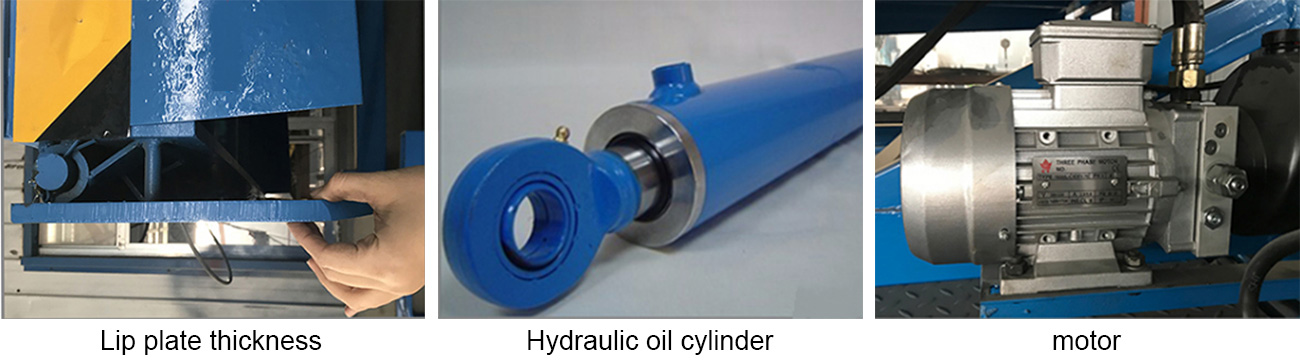

(3) Imported monolithic modular hydraulic station has good sealing performance and long service life.
(4) The design of high- -strength U-shaped beam can ensure its high load and long-term operation without distortion.
(5) The anti- skid pattern steel plate is used to make the platform have good anti-skid performance.
(6) Protect the foot skirt on both sides to prevent the toes from accidental injury.
|
Model |
table size (mm) |
lip (mm) |
up (mm) |
down (mm) |
pit size (mm) |
weight (kg) |
|
DCQ6-0.7 |
2000*2500 |
400 |
300 |
200 |
2080*2540*600 |
750 |
|
DCQ8-0.7 |
2000*2500 |
400 |
300 |
200 |
2080*2540*600 |
850 |
|
DCQ10-0.7 |
2000*2500 |
400 |
300 |
200 |
2080*2540*600 |
950 |
|
DCQ12-0.7 |
2000*2500 |
400 |
300 |
200 |
2080*2540*600 |
1100 |
|

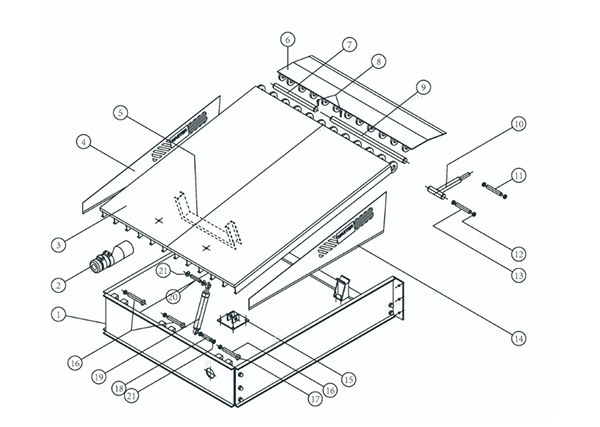

1. Mould |
12. Seeger straight pins of the lip |
|
2. Hydraulic control unit |
13. Straight Pin body of the body |
|
3. Upper plate |
14. Right foot guard |
|
4. Left foot guard |
15. Flange fixing - upper plate cylinder |
|
5. Control unit support |
16. Upper plate rotation pivot |
|
6. Swinging lip |
17. Seeger upper plate rotation pivot |
|
7. Left short shaft |
18. Straight Pin body of the upper plate |
|
8. Shaft fixing pins |
19. Upper plate cylinder |
|
9. Right long shaft |
20. Upper plate cylinder shaft pin |
|
10. Cylinder of the lip |
21. Seeger upper plate cylinder pins |
|
11. Pin of the lip cylinder rod |
|
