1.Movable jib crane has features of flexibility and broad application, it is the independent emergency hoisting equipment in the efficient automatic production line, with which assures the smooth and fast production.
2.Portable Jib Crane Movable Cantilever Crane has features of simple structure, easy operation, light weight, large working space and wide application.
3.Overloading protection,Top quality long time bearing polyurethane materials buffer
4.Crane traveling and cross limit switch
5.Voltage lower protection function, reduce energy consumption
1.There are electric and manual movement of the base, you can choose chain or wire rope hoist
2.There shouldn’t be flammable, explosive and corrosive gas in the working environment.
3.Mobile jib crane is not allowed to lift molten metal, toxic substances, flammable and explosive materials.
Fitting & fabrication workstations
2. Building Maintenance
3. Plant room maintenance
4. Marine loading and maintenance
5. Machine centre loading and maintenance to name a few applications

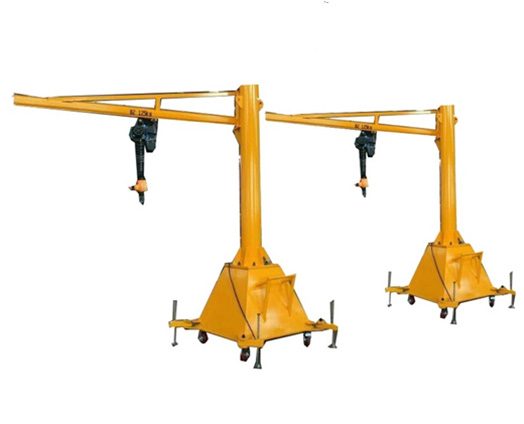

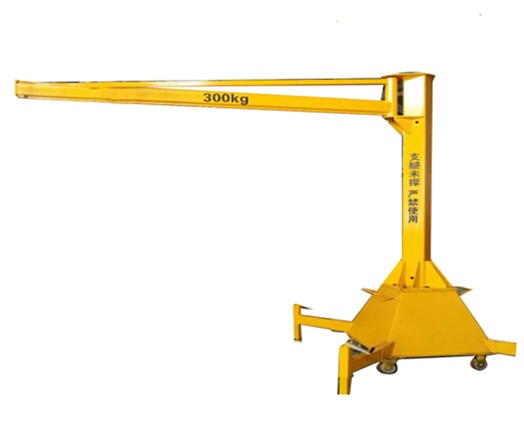

Manual move jib crane
Load capacity : up to 5 tons
Lifting height : up to 4 meter
Hoist traveling : manual or electric
Hoist lifting : manual or electric
| Lifting Capacity(t) | 0.5 | 1 | 2 | 3 | 5 | ||||||||||
| Lifting Height (m) | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 | 4.5 | 5 | 4.5 | 5 | ||
| Valid radius ( m) | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 5 | 5.5 | 5 | 5.5 | ||
| Working system | A3 | ||||||||||||||
|
Speed M/min |
Hoist |
Slow speed |
0.8 | ||||||||||||
|
Normal speed |
8 | ||||||||||||||
|
Slewing speed |
0.7 | ||||||||||||||
| Circulate speed | 20 | ||||||||||||||

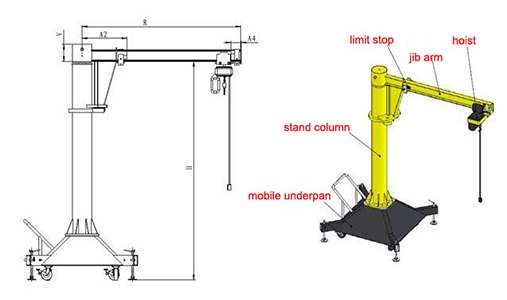

Main Structure and Feature
The versatility of Jib Crane is unmatched. Our Jib Cranes offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization. A Jib Crane can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.
|
Machine Parts

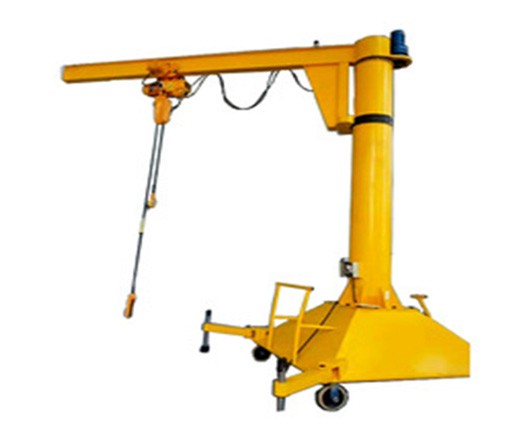

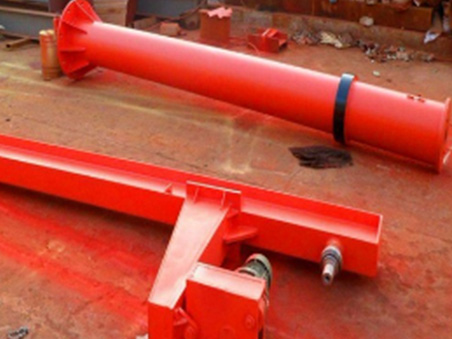

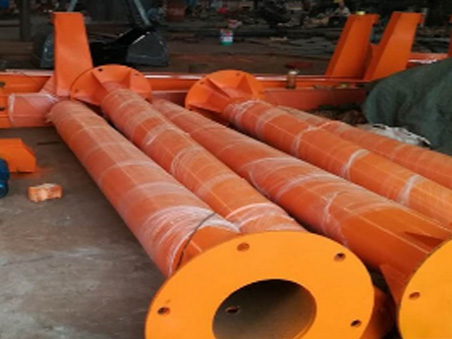

Name: standing column Brand: WYCRANE original: CHINA Domestic famous brand WYCRANE, adopts high strength steel, has over 20 years" experience |
 |
|
Main Features

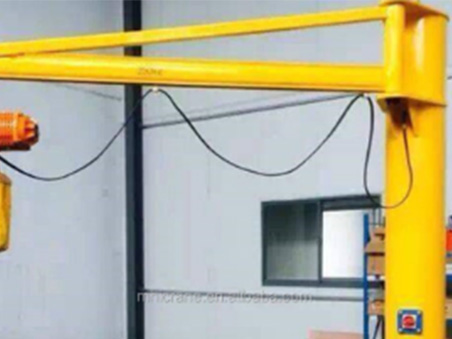

Name: Arm Brand: WYCRANE original: CHINA Arm length is customized according to clients' request |
 |
|
Machine Parts

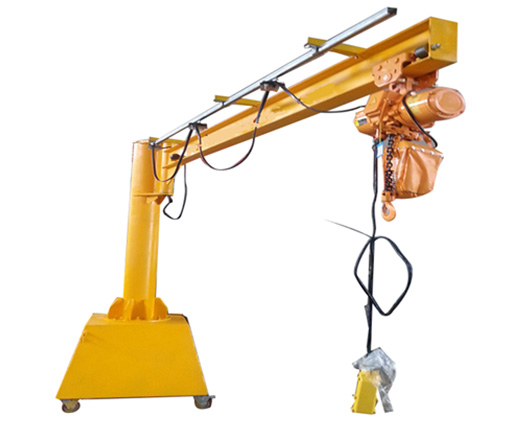

Name: electric hoist Brand: WYCRANE original: CHINA Can be flexibly rotated |
 |
|
Machine Parts

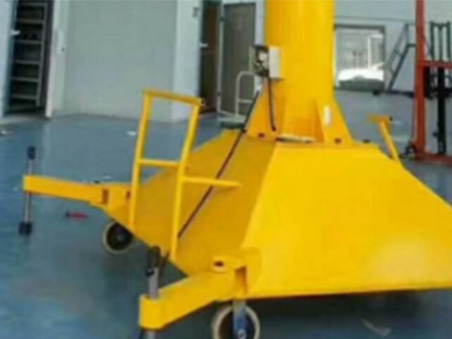

Name: Standing base Brand: WYCRANE origin: China Can move at will |
 |
Please Feel free to give your inquiry in the form below.we will reply you in 24 hours.
