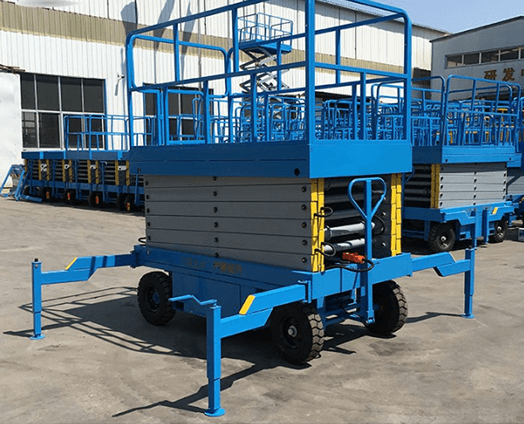

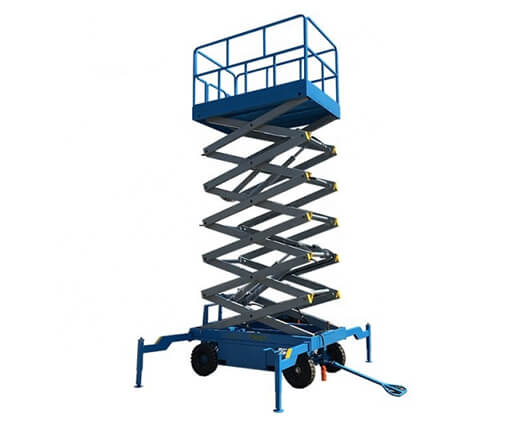

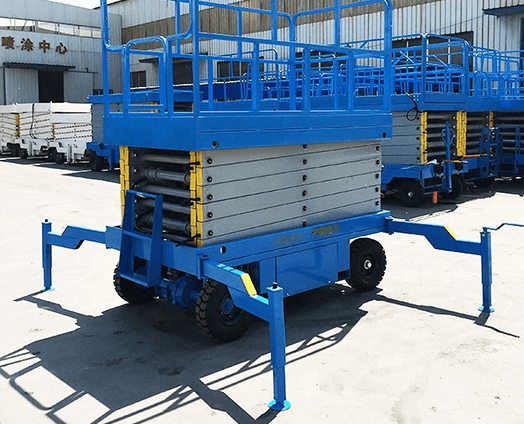

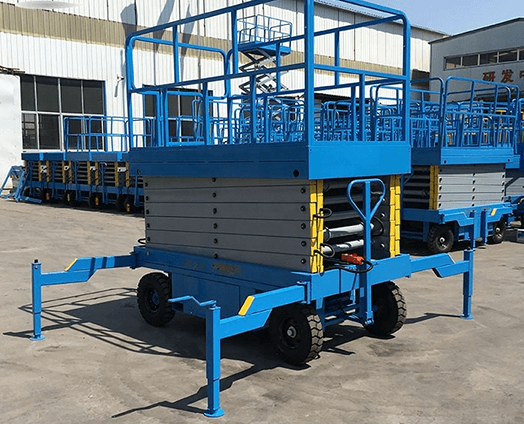

The mobile scissor lift platform has lifting height ranging from 4m to 18m,and loading weight from 300kg to 500kg,with lifting mode of manual operation,electric,battery and diesel oil,etc. Explosion-proof electric apparatus can be chosen for special places;remove control device platform can be installed according to the users”needs ,which has advantages including easy to move,large surface and strong carrying capacity,allowing simultaneous operation of several persons,and safety & reliability,so it is the optimal product for aerial lifting operation.

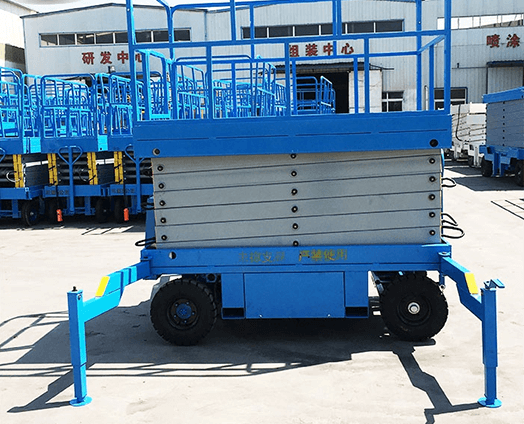

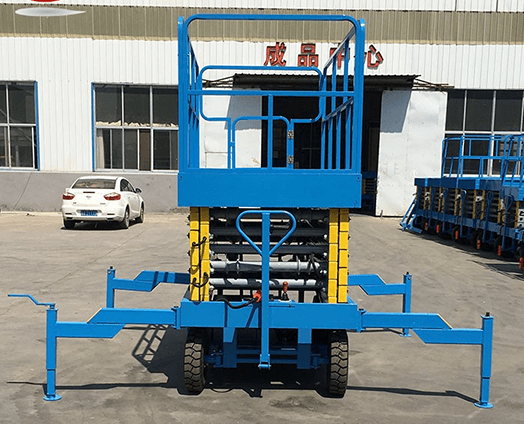

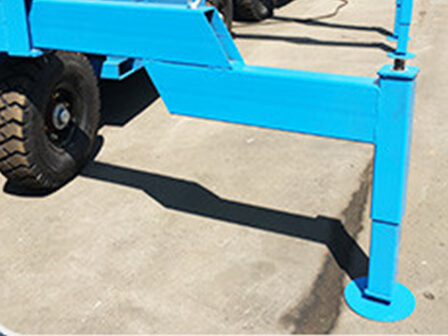

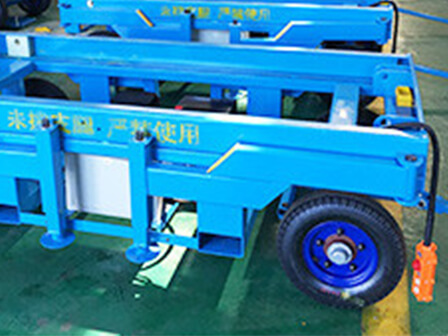

(1) 4 outriggers, safe and stable
(2) Four wheels, easy to move

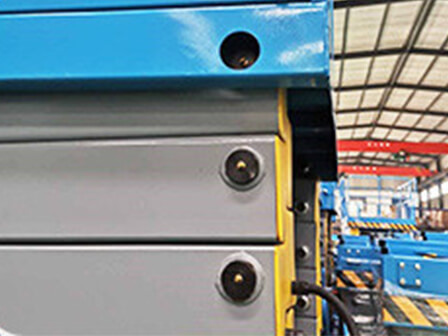

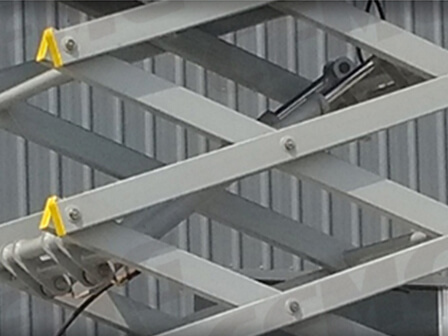

(3) High-strength manganese steel structure, strong and sturdy

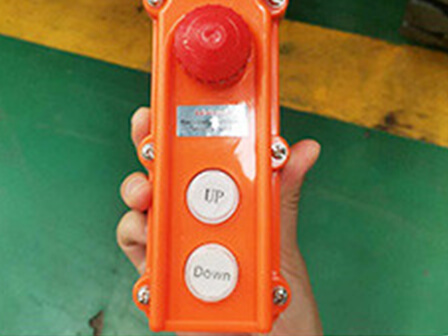

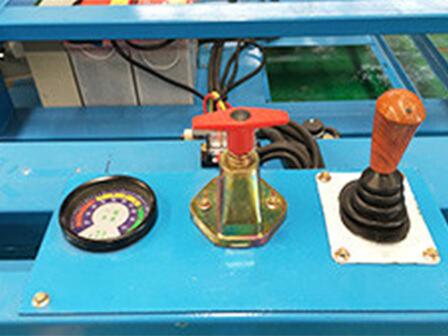

(4) double control system , ground control + platform control
(5) Large table, high load , allowing simultaneous operation of several persons.

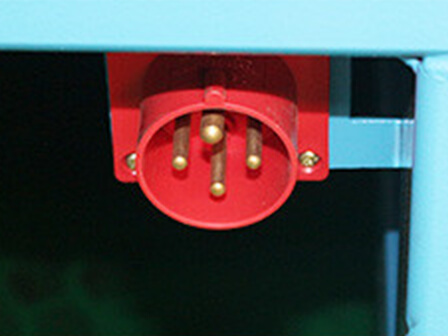

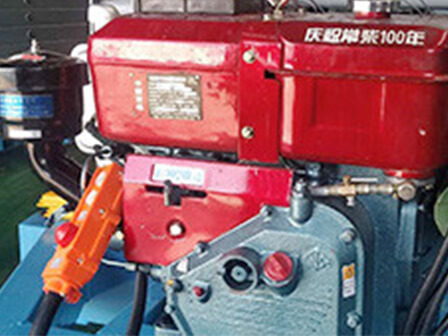

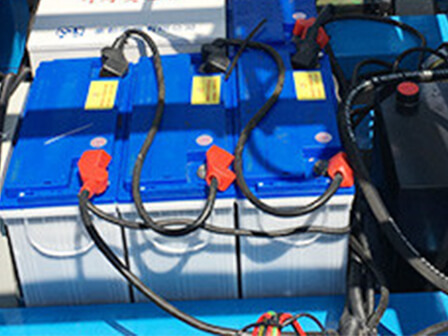

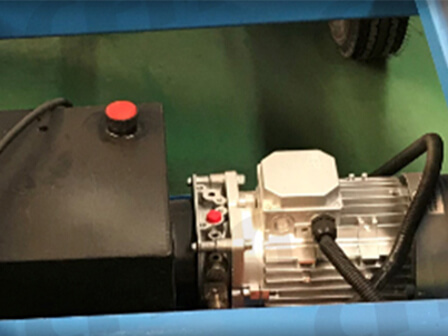

(6) Power can choose AC, DC or diesel engine .
Our company supply the self drive articulating lift with lifting height : 4-18m , working height : 6 meter to 20 meter , load capacity : 500kg or 300kg .
Maximum platform height : 4 meter to 18 meter
Maximum working height : 6 meter to 20 meter
3.load capacity : 500kg , 300kg or customized .

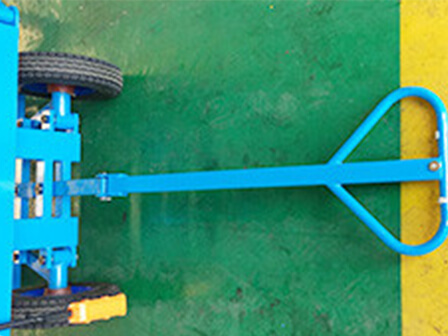

Power Source : move by tow or electric , raise and down by AC, DC or diesel engine .
Color ：Blue and gray or as your requirement

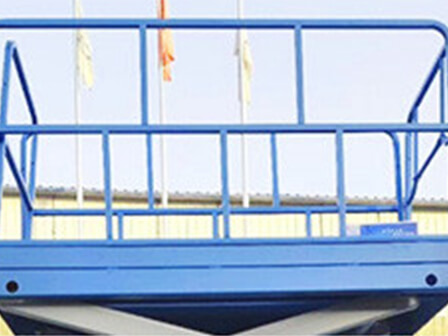

Guardrail: 1m high, removable, easy to use
Horizontal platform extension：0.5 meter(optional configuration)
gradeability：20%
|
Model |
Table size (mm) |
Load (kg) |
Max. lifting height (m) |
Overall size (mm) |
Total weight (kg) |
|
SJY0.5-4 |
2100*830 |
500 |
4 |
2250*950*1100 |
800 |
|
SJY0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
880 |
|
SJY0.5-7 |
2100*830 |
500 |
6.8 |
2250*950*1280 |
970 |
|
SJY0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
|
SJY0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
1165 |
|
SJY0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
|
SJY0.5-11 |
2100*1230 |
500 |
11 |
2250*1350*1650 |
1400 |
|
SJY0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
|
SJY0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
|
SJY0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
|
SJY0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
|
SJY1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
|
SJY1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
|
SJY1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
|
SJY1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
|
SJY1.0-12 |
2550*1530 |
1000 |
12 |
2796*1670*1750 |
2560 |
|
SJY1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
|
SJY1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
|
SJY1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
|
SJY1.5-10 |
2100*1530 |
1500 |
10 |
2250*1750*1850 |
2250 |
|
SJY1.5-12 |
2550*1530 |
1500 |
12 |
2796*1762*1850 |
2900 |
|
SJY1.5-14 |
2816*1600 |
1500 |
14 |
3045*1852*1960 |
3400 |
|
SJY2.0-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
|
SJY2.0-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
|
SJY2.0-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
|
SJY2.0-12 |
2550*1600 |
2000 |
12 |
2796*1852*1954 |
3200 |
|
SJY2.0-14 |
2816*1600 |
2000 |
14 |
3067*1852*2230 |
3900 |
