A 5 ton gantry crane is one of the most popular medium-duty lifting solutions used in industrial workshops, manufacturing facilities, warehouses, and construction sites. With a rated lifting capacity of 5 tons (5,000 kg), it provides an excellent balance between lifting performance, structural reliability, and investment cost.
Compared with overhead cranes, a 5 ton gantry crane does not always require complex building modifications because it is supported by its own legs and traveling system. This makes it a flexible choice for both permanent industrial facilities and temporary lifting operations.
Depending on different working requirements, a 5 ton gantry crane can be designed as a single girder gantry crane, double girder gantry crane, or portable gantry crane.
This guide explains everything you need to know before purchasing a 5 ton gantry crane, including types, specifications, applications, price factors, safety features, and a real project case.
 |
 |
 |
||
| Single Girder Gantry Crane | Double Girder Gantry Crane | Portable Gantry Crane |
A 5 ton gantry crane is a freestanding lifting machine designed to lift and move loads up to 5 metric tons.
Unlike overhead bridge cranes that depend on building-supported runway systems, gantry cranes use independent support legs and can operate on rails or wheels.
A typical 5 ton gantry crane consists of:
During operation, the hoist lifts the load vertically while the crane travels horizontally along the working area, allowing operators to move heavy materials efficiently.
A 5 ton gantry crane can be customized according to:
In modern manufacturing environments, efficient material handling is essential for improving productivity and reducing operational risks.
A gantry crane for workshop applications provides several important benefits.
Heavy components such as machinery parts, steel structures, molds, and equipment cannot always be moved manually.
A 5 ton gantry crane allows workers to:
Traditional manual handling requires more workers and increases the possibility of injuries.
Using an industrial gantry crane reduces dependence on manpower and allows fewer operators to complete heavy lifting operations.
Compared with overhead cranes, gantry cranes require fewer modifications to existing buildings.
They can be installed in:
A properly designed gantry crane provides controlled lifting movement and reduces risks associated with manual lifting or unsuitable handling equipment.
Different lifting requirements require different crane structures. The three most common types are:

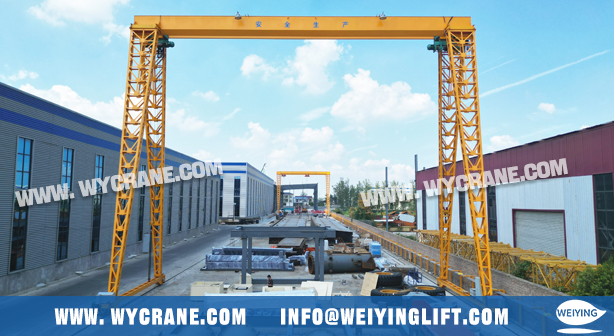

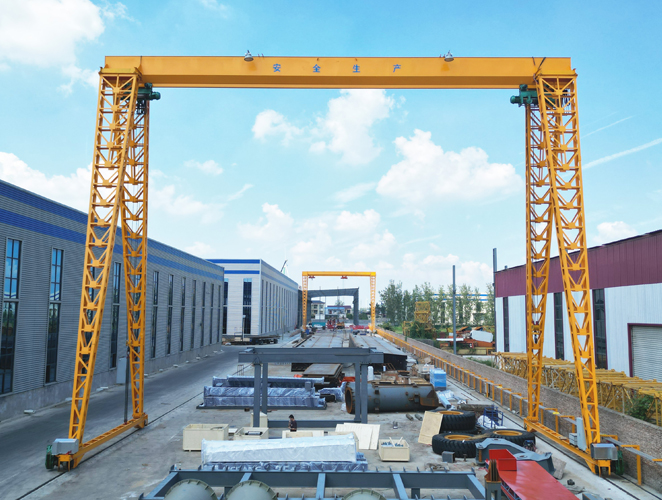

A single girder gantry crane uses one main beam supported by two legs. It is a lightweight and economical solution for medium-duty lifting operations.
A single girder design is usually selected when customers need reliable lifting performance while keeping the initial investment under control.

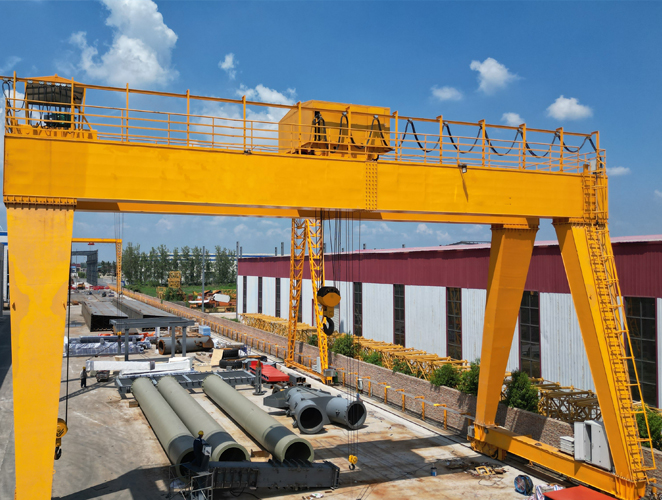

A double girder gantry crane uses two parallel main beams to provide higher strength and stability.
It is designed for applications requiring greater lifting height, longer spans, and higher working frequency.
For customers operating cranes frequently or handling heavier industrial components, a double girder structure usually provides better long-term value.

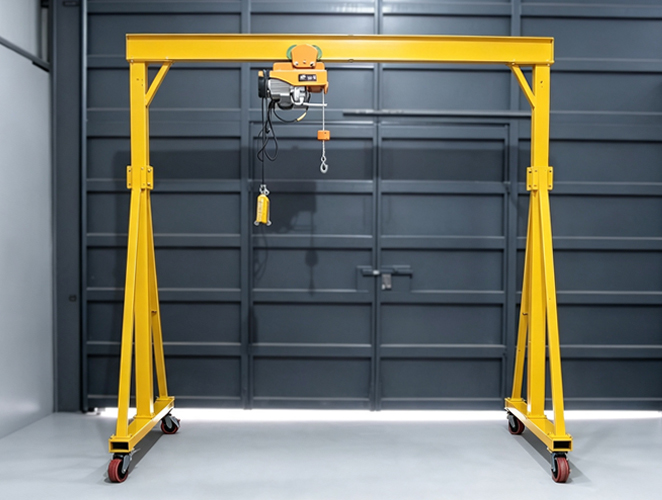

A portable gantry crane is designed for flexibility and easy relocation.
Unlike fixed industrial gantry cranes, portable models are usually equipped with wheels or casters, allowing movement between different working areas.
Portable gantry cranes are commonly chosen by companies requiring flexible lifting equipment rather than permanent crane systems.
The specifications of a 5 ton gantry crane vary depending on the structure, working environment, and customer requirements.
Typical specifications include:
| Parameter | Specification |
| Lifting Capacity | 5 Ton |
| Span | 5 m – 35 m |
| Lifting Height | 3 m – 12 m |
| Working Class | A3 – A5 |
| Lifting Speed | 0.8 – 8 m/min |
| Traveling Speed | 10 – 30 m/min |
| Control Method | Pendant control / Remote control |
| Power Supply | 380V 50Hz 3 Phase |
| Working Temperature | -20℃ to +40℃ |
For outdoor applications, additional configurations may include:
A 5 ton gantry crane is widely used in industries where medium-weight material handling is required.
A gantry crane for workshop applications is commonly used for:
Steel manufacturers use 5 ton gantry cranes for:
Typical warehouse applications include:
Portable and mobile gantry cranes are often used for:
Maintenance teams use gantry cranes for:
One of the most important concerns for buyers is:
How much does a 5 ton gantry crane cost?
The price depends on crane structure, specifications, materials, and customization requirements.
| Type | Estimated Price |
| Single Girder Gantry Crane | $8,000 – $20,000 |
| Double Girder Gantry Crane | $15,000 – $40,000 |
| Portable Gantry Crane | $3,000 – $15,000 |
The actual 5 ton gantry crane price may vary depending on:
A double girder gantry crane requires more steel and stronger components, resulting in higher manufacturing costs.
Longer spans require:
Higher lifting requirements increase the complexity of structural design.
Different lifting systems affect the total investment:
A crane designed for frequent operation requires:
Optional features include:
These options increase the overall gantry crane cost but may improve efficiency and service life./
A machinery manufacturer in South America needed a reliable lifting solution for moving heavy machine components during production and maintenance.
The customer requirements included:

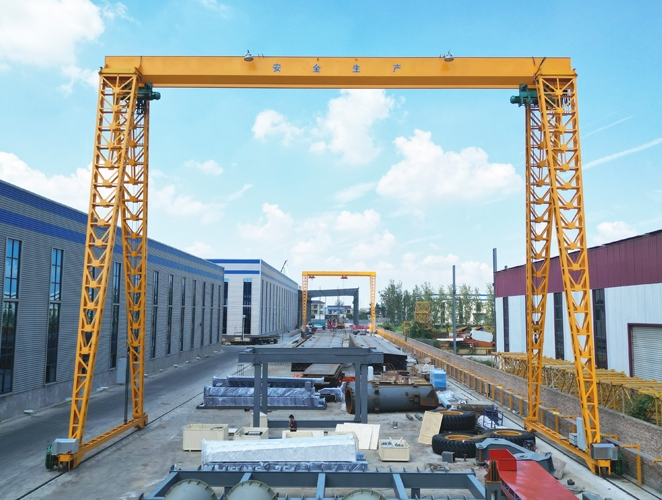

A 5 ton single girder gantry crane was supplied with:
After installation, the customer achieved:
The customer selected a single girder design because the crane was used for medium-duty workshop handling rather than continuous heavy industrial lifting.
Modern 5 ton gantry cranes include multiple safety systems to protect operators and equipment.
Prevents lifting operations beyond the rated capacity.
Limit switches automatically stop:
to prevent over-travel.
Allows operators to immediately stop crane operation during emergencies.
High-performance brakes keep loads stable during lifting and positioning.
Optional safety equipment includes:
Wireless remote control improves operator visibility and allows safer operation from a suitable distance.
When purchasing a 5 ton gantry crane, buyers should evaluate both initial investment and long-term operating costs.
The purchase cost includes:
Long-term expenses include:
A properly designed and maintained industrial gantry crane can typically provide 15–30 years of service depending on:
Although a high-quality gantry crane requires initial investment, it can provide long-term benefits:
A 5 ton gantry crane is a reliable and cost-effective lifting solution for workshops, warehouses, manufacturing plants, and construction applications.
Choosing between a single girder gantry crane, double girder gantry crane, or portable gantry crane depends on your lifting requirements, working frequency, installation conditions, and budget.
Before purchasing a 5 ton gantry crane, carefully evaluate the required span, lifting height, duty class, safety features, and future expansion needs. The right crane selection will provide better productivity, lower operating costs, and reliable performance for many years.
Yes, a portable gantry crane can be designed for 5 ton lifting capacity. It is suitable for applications requiring frequent relocation, temporary lifting operations, or flexible workshop use. However, compared with fixed industrial gantry cranes, portable models usually have limitations in span, lifting height, and continuous heavy-duty operation.
The best choice depends on the working conditions.
The service life of a 5 ton gantry crane depends on working conditions, duty class, maintenance, and operation frequency. With proper installation, regular inspection, and preventive maintenance, a high-quality industrial gantry crane can typically provide 15–30 years of reliable service.
