Main Features
1. Energy feedback device can effectively save energy.

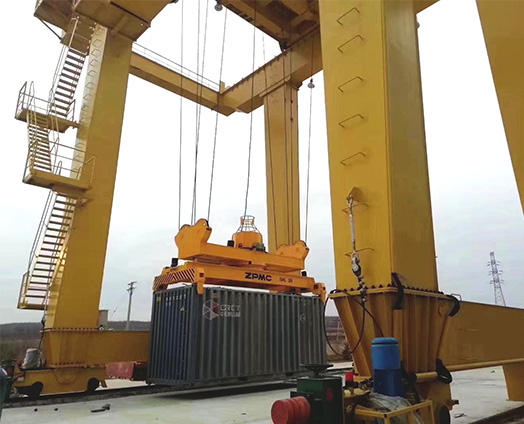

2. Container spreader can effectively prevent swing and torsion.
3. The intelligent fault detection system can analyze and warn the equipment fault better.
4. Separate electric room and trolley can reduce the running load and energy consumption.
5. The advanced automatic deviation correction system reduces the rail gnawing problem and improves the service life of the equipment.
6.The intelligent safety monitoring and management system can better meet the needs of safety monitoring and automatic management of freight yard.

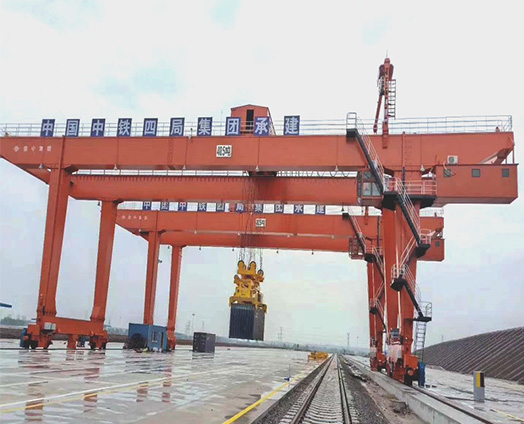

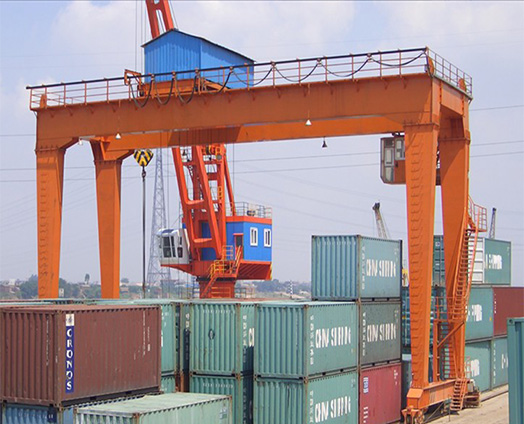

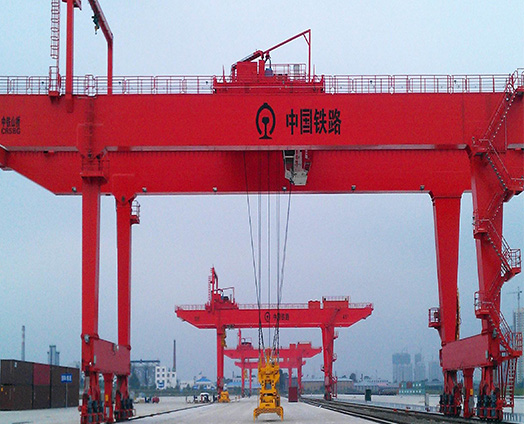

Rail type container gantry crane (RMG) is a specialized container handling equipment, it is walking from professional orbit, equipped with automatic container spreader, multi-purpose at container yard of container depot and container trailer loading and unloading operation, also can be used for small container ship handling operation of inland port and the header point transfer, etc.
With high utilization rate of loading and unloading efficiency is high, the yard (span, cantilever, etc can be customized according to the requirements of customers, high equipment intact rate, low maintenance cost, use of low cost and easy operation etc.
Rail mounted gantry crane

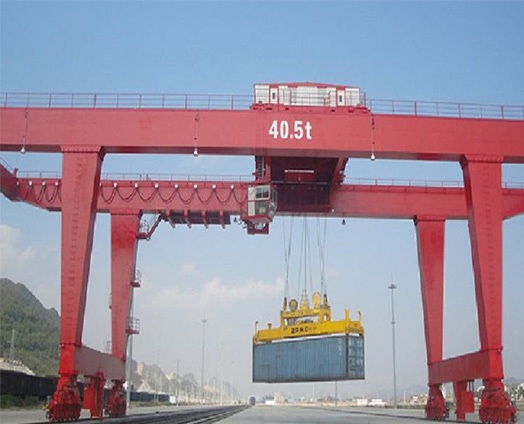

Load capacity :41 tons under spreader
Can be customized
|
Lifting weight (t) |
10 |
16 |
20/10 |
32/10 |
36/16 |
50/10 |
|
|
Span (m) |
18~35 |
18~30 |
18~35 |
22 |
26 |
22~35 |
35 |
|
Lifting height (m) |
Main hook |
11.5 |
10.5,12 |
10.5 |
11.5 |
11.5 |
12 |
|
Auxiliary hook |
|
|
11 |
12 |
12 |
13 |
|
|
Speed (m/min) |
Main hook |
8.5 |
7.9 |
7.2 |
7.5 |
7.8 |
6 |
|
Auxiliary hook |
|
|
10.4 |
10.4 |
10.5 |
10.4 |
|
|
Trolley travel |
43.8 |
44.5 |
44.5 |
41.9 |
41.9 |
38.13 |
|
|
Long travel |
37.6,40 |
38,36 |
38,36 |
40 |
40,38 |
38 |
|
|
Duty classification |
A5 |
||||||
|
Power source |
Three-phase AC. 127~480V 50/60Hz |
||||||
