Benefits At A Glance

Main Features

1)Excellent design, impact frame.

2) Use world-renowned brand components, including pneumatic components, electrical components and operating components.

3) Stepless control and smooth operation.

4) High automation and intelligent operation, no pollution

5) Security monitoring, more extended functions.

Main application

(1)Designed and made according to JB/T 1306 Electric Single-girder Crane

(2)The matched electric hoists have CD1 model, MD1 model, etc.

(3)It is a light & small lifting equipment with running on rail

(4)Hoisting goods in the factory, warehouse, stockyard

(5)Banned to use in such dangerous environment as easily combustible,explosive,etc

Applicable scope

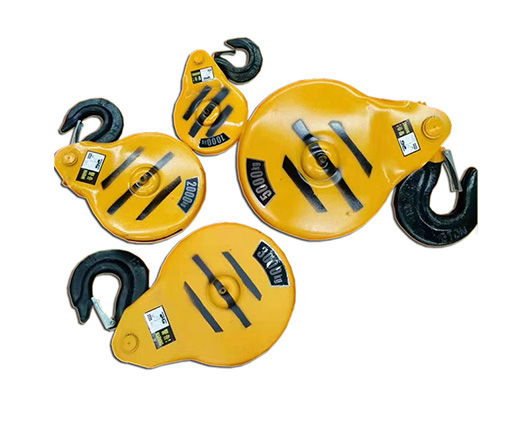

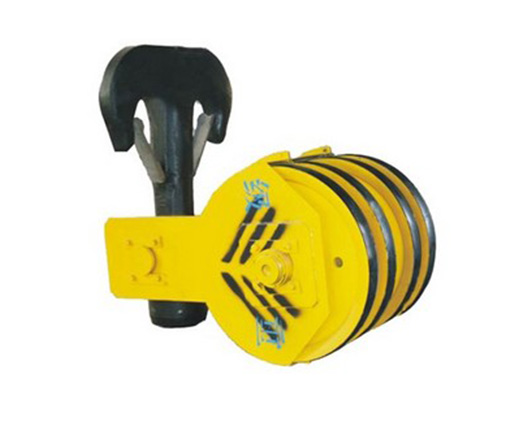

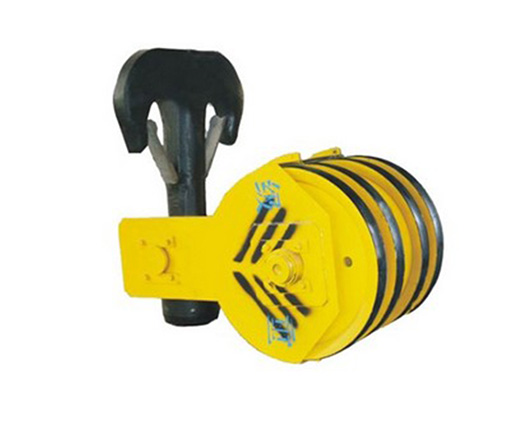

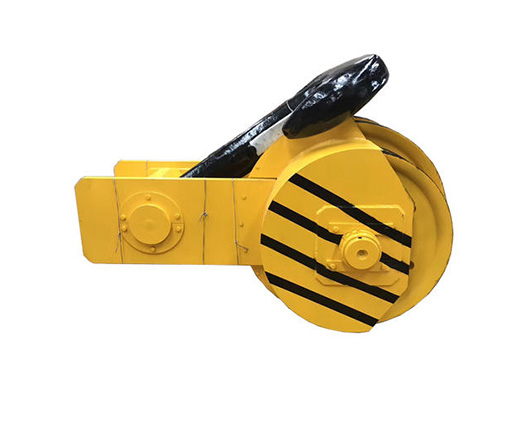

Heavy Crane Hook & Crane Hook Block & Crane Hook is one of the most suitable slings in hoisting.

1. It is connected with pulleys to hang on the wire rope of lifting mechanism.

2.And the hook is the most widely usage when lifting cargos. It is made easily and operated practically.

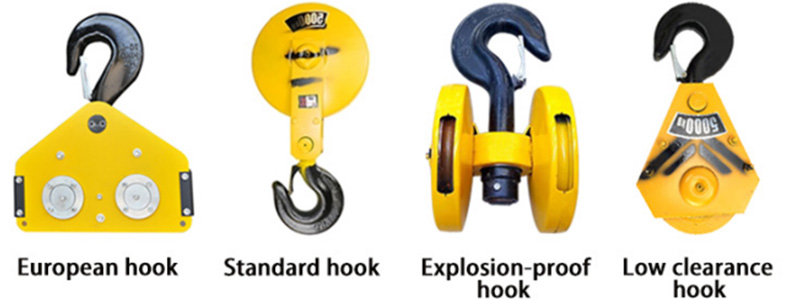

3.Hooks can be classified into single hook and double hooks according to the appearance; forged hooks and strapped hooks according to production method.

Technical Data

Single hook: 5t/6t/10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t

double hook: 10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t.

block model: 3.2t/ 5t/10t/16t/20t/25t/32t/50t/75t/100t/200t.

Strapped hooks is riveting by several cutting forming steel plate, respective steel plate has fissure will no broke the total hooks using, and its safety feature is better, but its self-weight is large, mostly be used in large capacity or lifted molten steel cranes.

Load capacity D H H1 H2 U B B1 H3
3.2T 45 320 220 33 50 65 40 62
5T 55 425 292 42 65 85 54 82
10T 75 578 400 60 90 120 74 115
16T 90 700 481 75 115 150 90 142
20T 105 787 538 80 170 170 102 164
32T 130 972 660 100 210 210 130 205
50T 165 1200 789 135 270 270 165 260
80T 195 1580 1100 160 320 320 200 320

The Structure Sketch

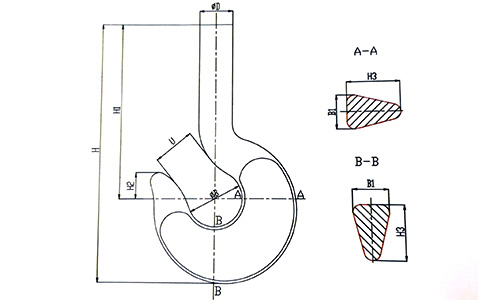

  • Hook Drawing

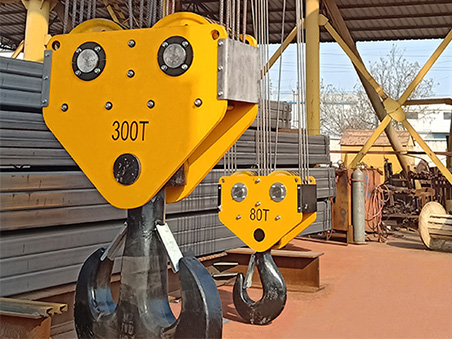

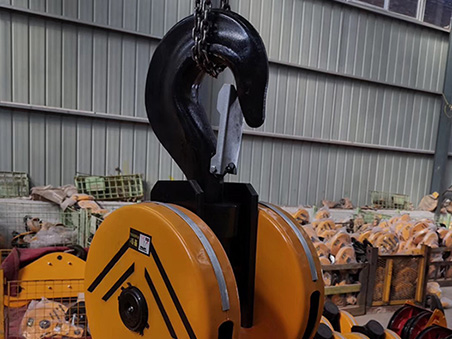

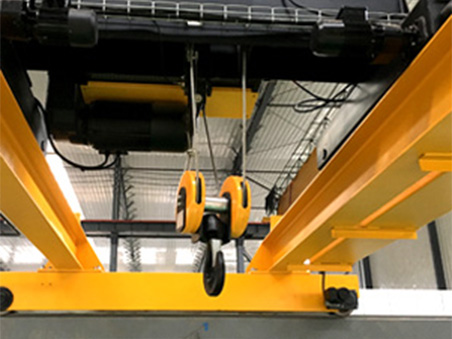

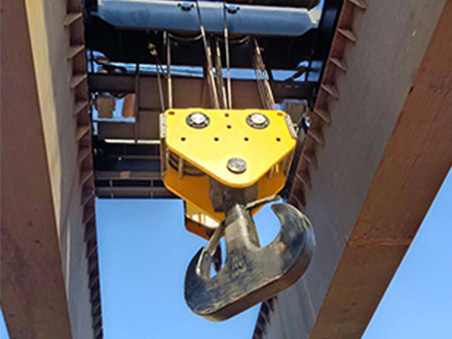

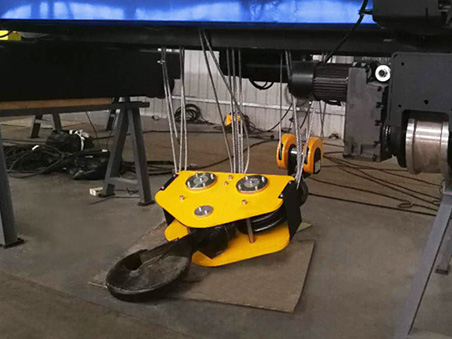

Application Examples
