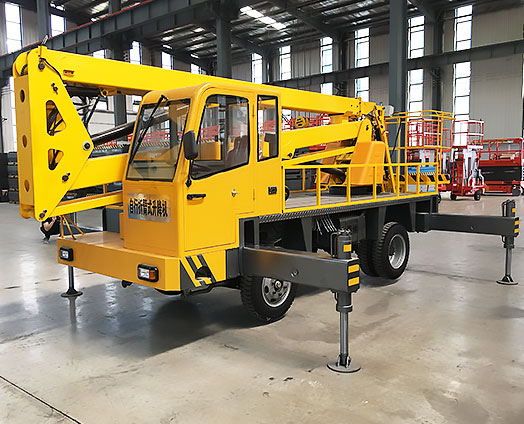

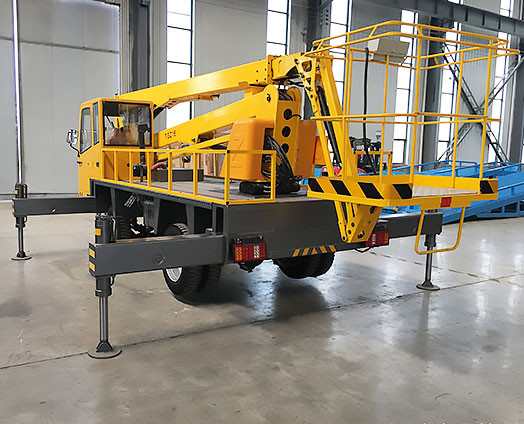

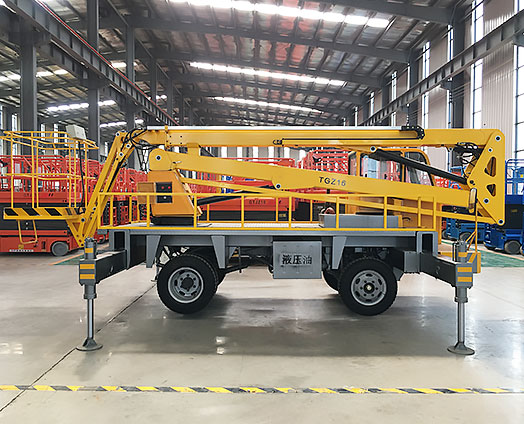

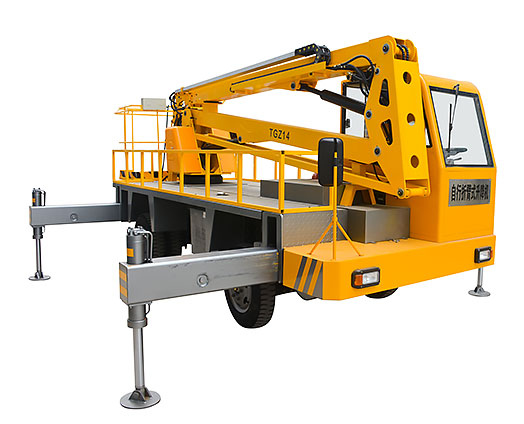

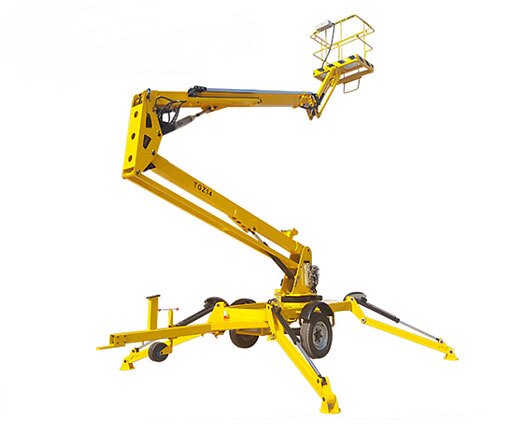

The folding arm lift platform is widely used in the installation, maintenance and climbing of municipal, electric power, street lamp，advertisement, communication, photography, gardening, wharf, Airport port, large industrial and mining enterprises and other industries. It is suitable for all kinds of rugged terrain in the field and has a wide range of space operations.
(1) Diesel engine power, no need for external power supply.
(2) Suitable for high altitude operations in the field.
(3) Drive walking and lifting with diesel engine power.
(4) Great power and fast walking speed.
(5) Suitable for all kinds of rugged terrain in the field and has a wide range of space operations.
Our company supply the folding arm lift platform with lifting height:12-16m , working radius:7.5-9.5m.
(1) Maximum platform height : 12 meter to 16 meter.
(2) Maximum working height : 14 meter to 18 meter.
(3) Power Source : diesel engine.
(4) Load capacity : 200 KG.
(5) Platform size : 1200x800 mm.
(6) Color : yellow or as your requirement.
(7) Advantage : it has a wide range of uses, suitable for all kinds of rugged terrain, wide operating range and strong power.
|
Model |
Lift height (M) |
Table size (MM) |
Overall size (MM) |
Load (KG) |
Maximum working radius (M) |
|
TGZ-12 |
12 |
1200*800 |
5200*1750*2100 |
200 |
7.5 |
|
TGZ-14 |
14 |
1200*800 |
5800*1800*2100 |
200 |
8.5 |
|
TGZ-16 |
16 |
1200*800 |
6571*1800*2200 |
200 |
9.5 |
|
Details |
||||
 |

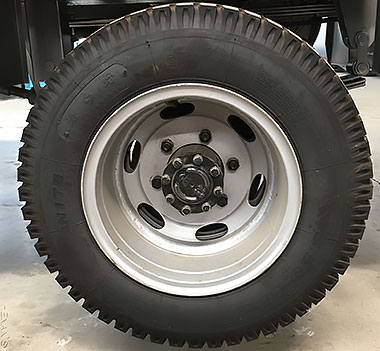

All Terrain Tyre We use this tyre to our vechial mounted boom lift cherry picker for rough terrain, including mud road, pit posse road. 4*4wd axia, max. Drive speed can be 100km/h. |
|||
 |

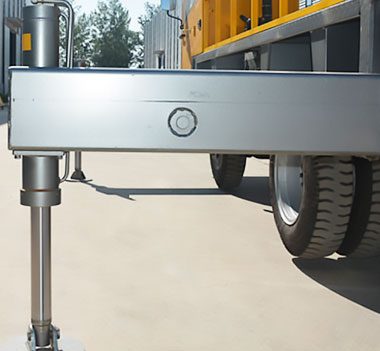

Hydraulic Outriggers The Drive and Set option to have ultimate flexibility in positioning your boon lift exactly where you need it. When the platform is in the fully lowered position, you can drive the unit to the area where you need to work, deploy the outriggers and then raise the platform to the level needed. These quick, efficient operations increase your productivity on the job. |
|||
 |

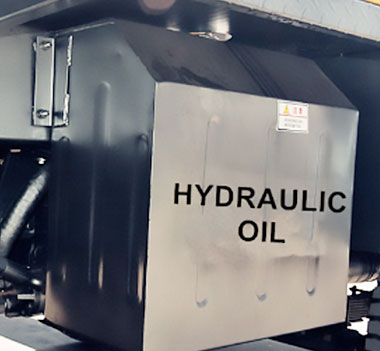

Hydraulic Oil The antifreeze hydraulic oil can support your boom lift work in an extremely hostile environment, even the temperature comes below 32℉. |
|||
|
|

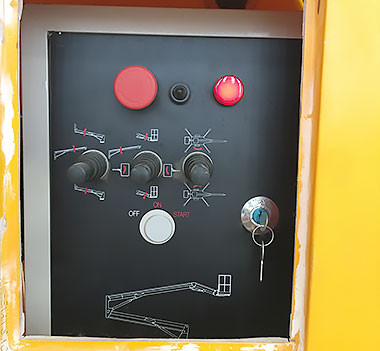

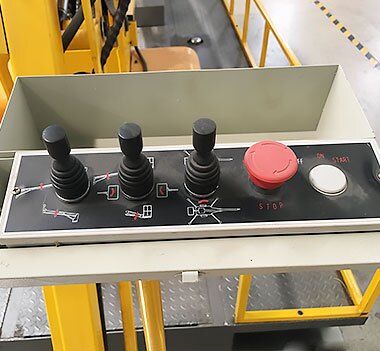

Double control : platform control + ground control. |
|||
