Benefits At A Glance

product description

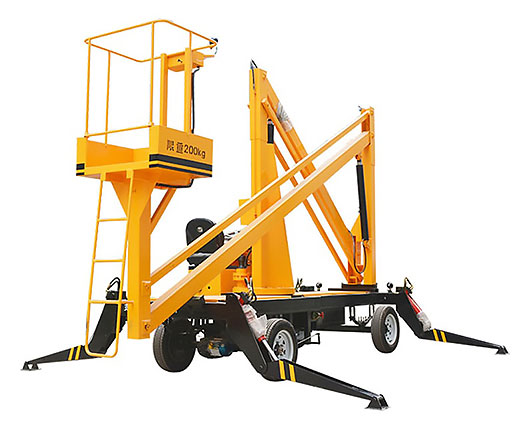

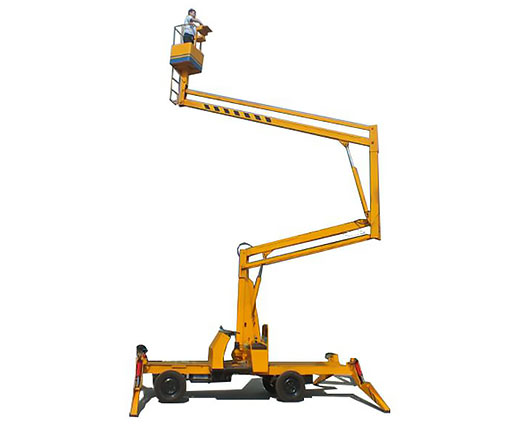

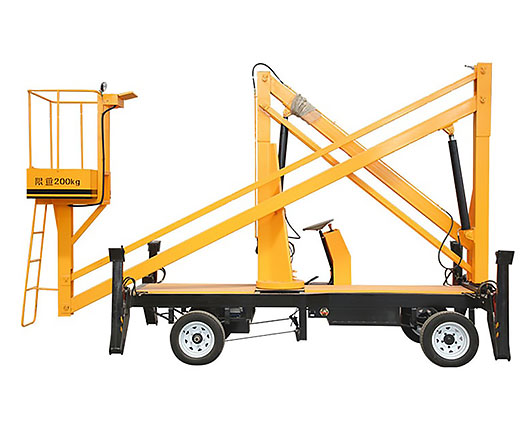

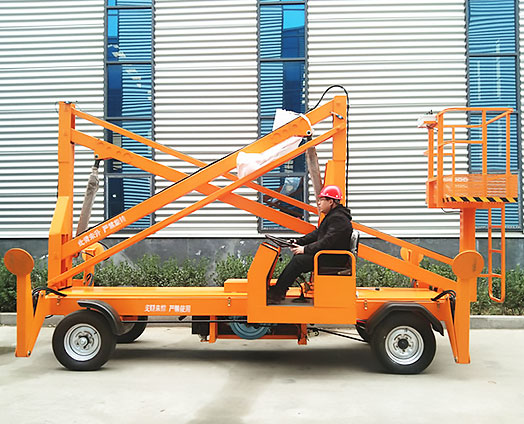

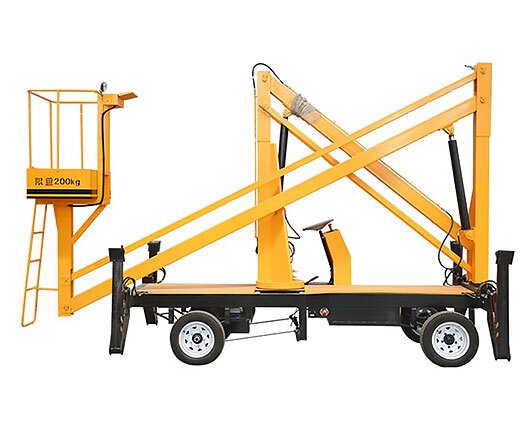

The Self-drive Articulating Lift for indoor and outdoor work With self walking, self supporting legs, simple operation, easy to use, large operating surface, in particular, can cross a certain obstacle or a it can be carried out at the characteristics of multi-point aerial work. Widely used in roads, docks, stadiums, shopping malls, residential property, factories and workshops and large- -scale operation. Power can choose diesel engine, battery, diesel electric dual-use.

Main Features

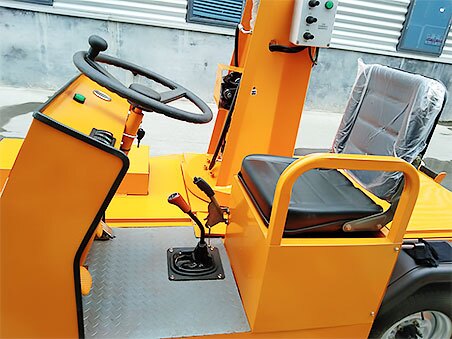

(1) Self drive type, easy to move.

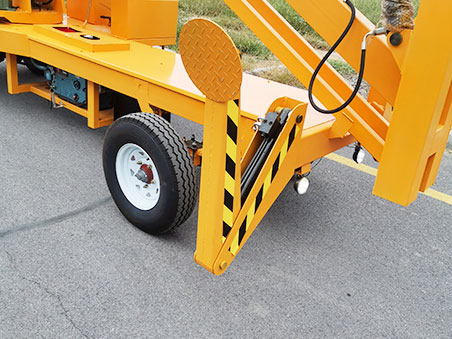

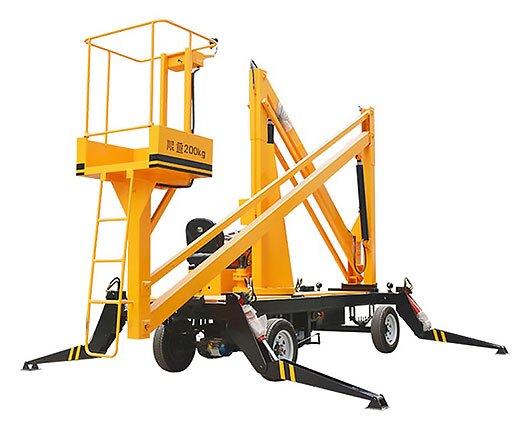

(2) 4 automatic hydraulic leg, stable and easy operate.

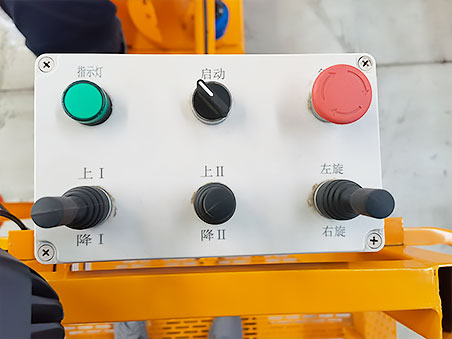

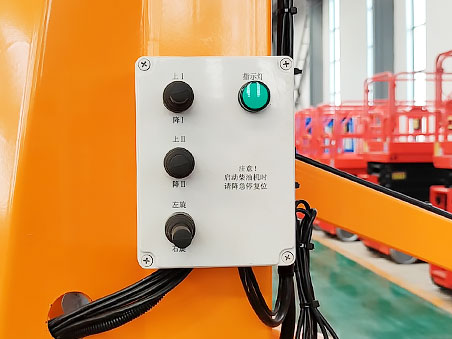

(3) Double control system, ground control + platform control.

(4) 360 degree rotation, easy for operator working.

(5) Power can choose diesel engine, battery, diesel electric dual-use.

(6) Can cross some obstacles or lift in one place for multi-point high-altitude operations.

Supply Scope

Our company supply the self drive articulating lift with lifting height: 8-14m, working radius: 3-4.2m.

Technical Data

(1) Maximum platform height : 8 meter to 14 meter.

(2) Maximum working height : 10 meter to 16 meter.

(3) Load capacity: 200kg.

(4) Platform size: 800*750*1000mm.

(5) Power Source : can choose diesel engine ,battery ,diesel electric dual-use.

(6) Color: orange, yellow.

(7) Use place: roads, docks, stadiums, shopping malls residential property, factories and workshops and large -scale operation.

(8) Advantage of articulating lift platform: It with self driven system , self supporting legs, simple operation , easy to use,large operating surface,in particular,can cross some obstacle.

Model

Overall size (mm)

Max. lifting height (m)

Load (kg)

Working radius (m)

Total weight (kg)

Walking speed (km/h)

WYQB-8

4000*1700*2700

8

180KG

3

1500

15-30

WYQB-10

4000*1700*2700

10

180KG

3.4

1600

15-30

WYQB-12

4800*2100*3050

12

180KG

4

1800

15-30

WYQB-14

5100*2200*3300

14

180KG

4.2

1900

15-30

The Structure Sketch

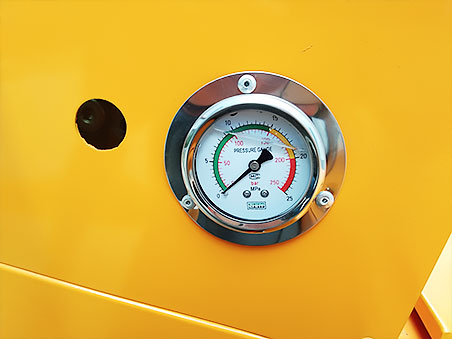

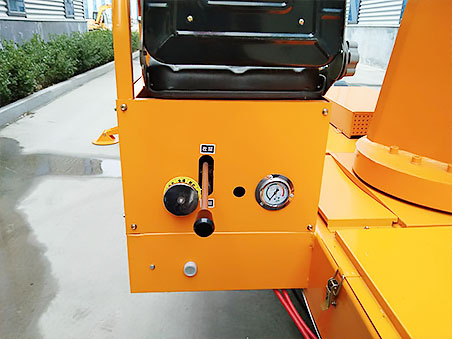

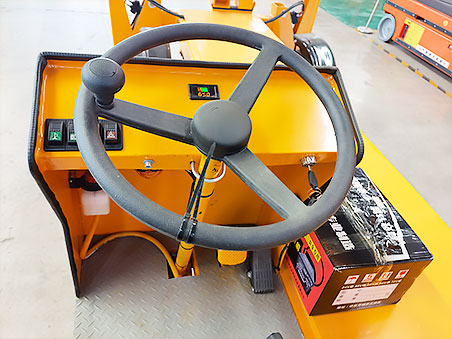

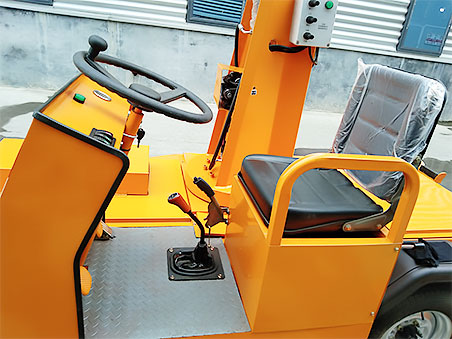

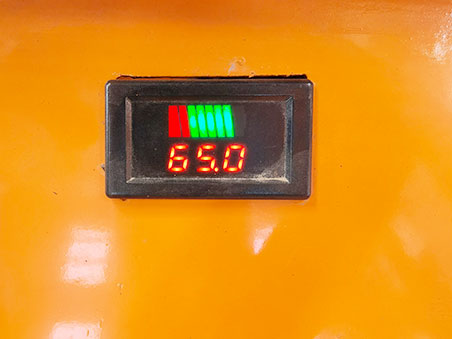

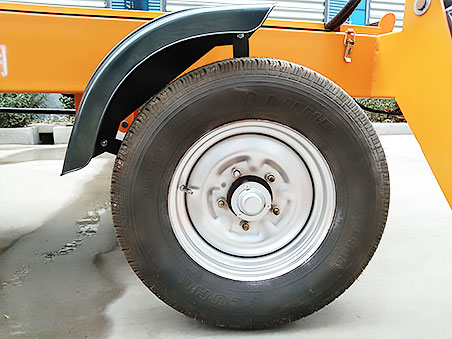

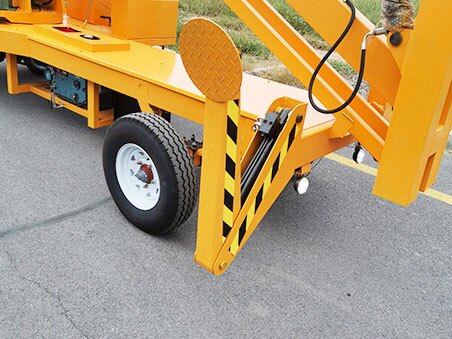

Details
