(1)Flexible and convenient operation, it is the best choice for warehouses and supermarkets to store goods and reclaim materials.
(2)25% climbing ability, able to climb slopes smoothly.
(3)The industry’s smallest turning radius (0°) and compact design (1.53m x 0.70m) facilitate operation in tight Spaces.
(4)The fault code is automatically displayed for easy maintenance.
(5)Can be used in the factory supermarket shelves to pick up goods, maintenance machinery and tools, paint decoration, replacement of lamps, electrical appliances, cleaning and maintenance and other purposes.
(1) Emergency descent.
(2) Emergency stop.
(3) Fault code display.
(4) Overload alarm.
(5) Platform self-locking door.
(6) Charging indicator.

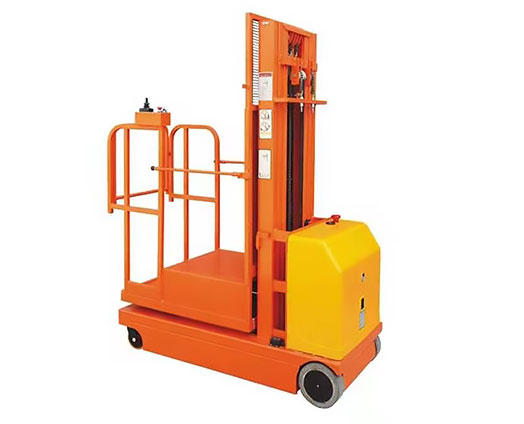

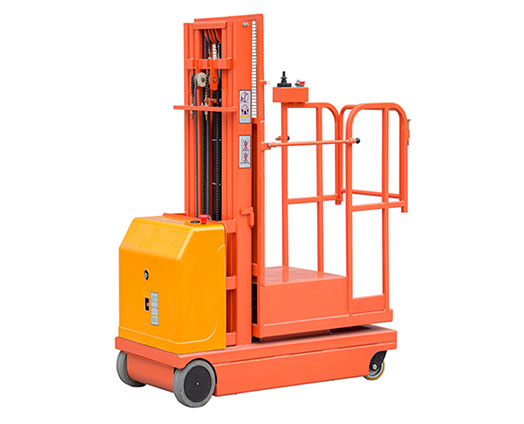

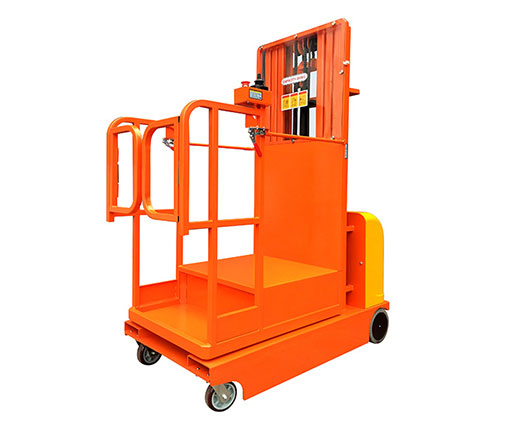

Product name: Aluminium alloy lift platform
Model: GTWY
Carrying capacity: 100kg~300kg
Lifting height: 4m~18m
Operation: Move by hand,up and down by electric.
|
Full electric |
|||||
|
Specification |
AT3-2.7 |
AT3-3 |
AT3-3.5 |
AT3-4.0 |
AT3-4.5 |
|
MAX.Platform height (mm) |
2700 |
3300 |
3500 |
4000 |
4500 |
|
MAX.Machine height (mm) |
3989 |
4439 |
5189 |
5400 |
6000 |
|
Min distance to the ground (mm) |
40 |
||||
|
Max load(kg) |
300 |
||||
|
Max driving speed (fall) (km/h) |
4 |
||||
|
Max driving speed (rise) (km/h) |
1.5 |
||||
|
Platform size (mm) |
650*690 |
||||
|
Min turning radius (mm) |
1500 |
||||
|
Max adapted ground degree (%) |
15~20 |
||||
|
Deiving wheel size (mm) |
Φ230*80 |
||||
|
Caster size (in) |
6 |
||||
|
Driving motor (v/kw) |
2*24/0.4 |
||||
|
Lifting motor (v/kw) |
24/16 |
||||
|
Maintenance free battery (v/Ah) |
2*12/120 |
||||
|
Charger (v/A) |
24/20 |
||||
|
Overall Length (mm) |
1520 |
||||
|
Overall Width (mm) |
760 |
||||
|
Overall Height (mm) |
1710 |
1860 |
2110 |
1810 |
1990 |
|
Overall Net Weight (kg) |
560 |
580 |
600 |
662 |
682 |
|
Semi-electric |
||||
|
Specification |
T2-2.7 |
T2-3.3 |
T2-4.0 |
T2-4.5 |
|
MAX.Platform height (mm) |
2700 |
3300 |
4000 |
4500 |
|
MAX.Machine height (mm) |
4020 |
4900 |
5400 |
6100 |
|
Min distance to the ground (mm) |
35 |
35 |
35 |
35 |
|
MAX load(kg) |
200 |
200 |
200 |
200 |
|
Platform size(mm) |
620*600 |
630*620 |
630*620 |
630*620 |
|
Battery(v/Ah) |
12/120 |
12/120 |
12/120 |
12/120 |
|
Charger(v/Ah) |
12/15 |
12/15 |
12/15 |
12/15 |
|
Overall Length (mm) |
1300 |
1300 |
1300 |
1300 |
|
Overall Width (mm) |
760 |
840 |
840 |
840 |
|
Overall Height (mm) |
1760 |
2040 |
1810 |
1980 |
|
Overall Net Weight (kg) |
290 |
350 |
410 |
450 |
 |

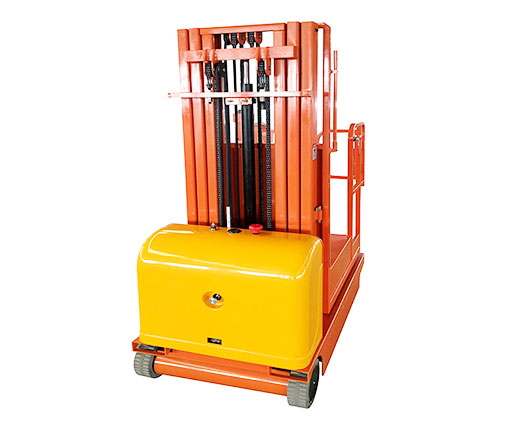

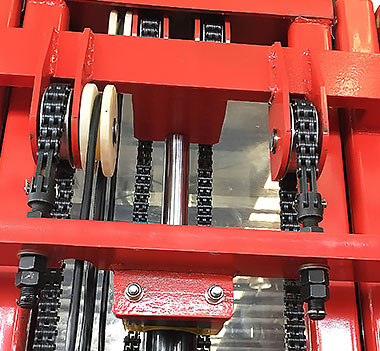

Three mast The telescopic structure frame is made of Q345 steel material, which will not easily break. When lifting operation, it can bring stable working environment to the operation. |
 |

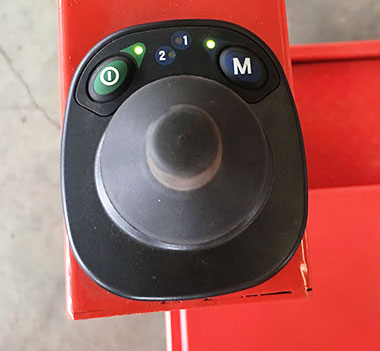

Operation Lifting platform with full electric and semi electric options, easy to operate, can meet different tasks. |
 |

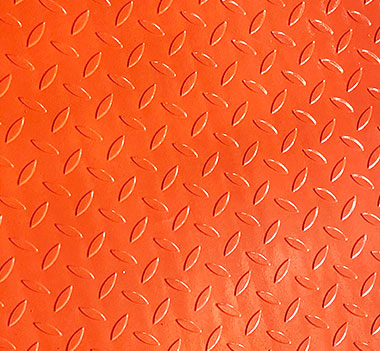

Non-slip mesa Adopt anti-skid pattern design, more safety. |
 |

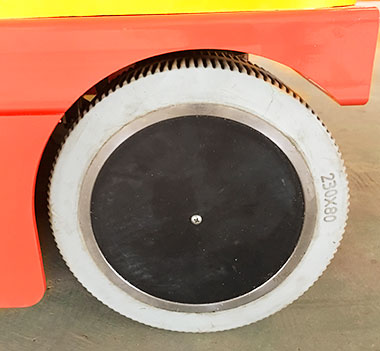

Wheel Order picker adopts non-trace polyurethane tire, can be used in advanced places, no damage to the ground, skid resistance and wear resistance. |
