When selecting a gantry crane for industrial handling, warehouse storage, port loading and other logistics applications, span stands out as one of the most decisive technical parameters. It not only defines the horizontal working coverage of the crane, but also profoundly influences operational efficiency, structural safety, construction expenditure and long-term service stability. This comprehensive guide elaborates the practical significance of span selection, major influencing criteria, typical purchasing errors, industry-specific span recommendations and cost control tips, delivering solid reference for global buyers to pick the optimal span size.
Why Gantry Crane Span Selection Matters
Reasonable span design lays a solid foundation for steady and economical crane operation, and it exerts tangible impacts on multiple core aspects:
- Operational efficiency: Proper span ensures full coverage of designated working zones without blind spots or movement barriers, streamlining material lifting and transfer procedures.
- Structural safety & stability: Excessively long span brings extra bending stress to main beams, while undersized span fails to meet actual handling demands. Both improper designs raise potential safety hazards during heavy load operation.
- Overall project cost: Span dimension is closely linked to steel consumption, travelling mechanism configuration, motor power rating and rail foundation construction cost, directly controlling the total investment budget.
- Site space utilization: Scientific span planning maximizes the usable area of workshops, yards and storage zones, realizing rational layout of goods, vehicles and auxiliary equipment.
In summary, well-matched span effectively cuts unnecessary capital input, meanwhile elevates working performance and operational safety throughout the crane service life.

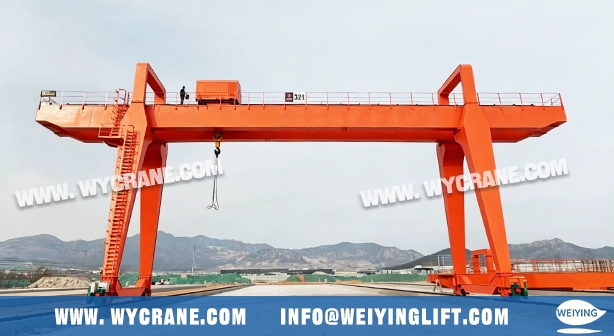

Core Function of Gantry Crane Span
Crane span refers to the horizontal distance between center lines of two parallel running rails, which determines the maximum horizontal working range of the gantry crane. The whole selection process needs to balance practical working coverage and structural economic efficiency.
Its pivotal functional values are reflected in these aspects:
- Ensuring full coverage of materials or containers inside the working area.
- Providing sufficient stability for lifting heavy loads, especially under dynamic conditions.
- Optimizing load distribution between wheels, rails, and foundation.
- Reducing structural stress by minimizing unnecessary bending moments.
Crane with properly designed span features higher durability, precise positioning performance and lower daily power consumption.
Key Factors to Consider When Determining Gantry Crane Span
Buyers need to conduct comprehensive assessment on on-site conditions before confirming the final span specification. The following decisive factors cannot be neglected:
1. Working Area Size and Layout
Accurately measure the actual width of indoor workshops, open yards and port operation areas. Reserve sufficient space for freight trucks, storage racks, auxiliary mechanical equipment and safe pedestrian passages. Avoid pursuing oversized span blindly if regular working demands can be satisfied.
2. Rail Installation and Foundation Condition
Practical span limitation is restricted by rail gauge standard, concrete foundation bearing capacity and local soil property. Complicated ground foundation renovation will sharply increase construction cost. Optimize span size reasonably to adapt to existing ground conditions and minimize foundation reconstruction workload.
3. Lifting Capacity and Working Grade
When calculating crane capacity, you also need to consider capacity and working radius.Larger span generates stronger bending force on main beam structures.
- Heavy-duty cranes graded A5–A7 for frequent intensive operation require conservative and compact span design to secure structural stability.
- Light-duty cranes graded A3–A4 with intermittent working mode allow relatively flexible span configuration.
→ Learn how capacity affect crane selection
4. Crane Structural Type
Different gantry crane models carry distinct span bearing limits:
- Single girder gantry crane: Suitable for short span scenarios, maximum applicable span within 26 meters.
- Double girder gantry crane: Adopted for ultra-wide span and heavy load lifting occasions with superior structural strength.
-
Portable gantry crane: Suitable for light-duty, short-span and mobile operation scenarios, maximum applicable span within
8 meters, ideal for temporary workshops, maintenance work and flexible material handling.
5. External Environmental Conditions
Outdoor wind pressure, extreme temperature variation and regional seismic intensity set higher requirements for structural anti-deformation capability. Open-air working cranes need stricter span control compared with indoor working equipment.
Common Span Selection Mistakes and Avoidance Solutions
Many purchasers make improper span decisions due to insufficient professional experience, resulting in cost waste or functional deficiency. Four frequent errors and targeted solutions are listed below:
❌ Mistake 1: Unnecessary excessive span selection
Wider span leads to increased steel material usage, higher power consumption, amplified wheel pressure and elevated manufacturing and installation cost. Long-term maintenance expenditure will also rise correspondingly.
✅ Solution: Adopt the minimum qualified span that fully meets daily lifting and travelling requirements.
❌ Mistake 2: Simply matching span with total site width
The actual effective working width of the crane is always narrower than the overall site width. Direct alignment will leave no reserved buffer space.
✅ Solution: Set aside enough safety clearance, equipment maintenance zone and anti-collision spacing during span calculation.
❌ Mistake 3: Neglecting future expansion demands
Some clients choose minimum span merely to save upfront cost, yet fail to satisfy enlarged production scale and cargo handling volume in later operation periods.
✅ Solution: Reserve moderate span allowance based on long-term production planning.
❌ Mistake 4: Ignoring rail foundation construction difficulty
Unreasonable span design may bring huge challenges to rail paving and ground reinforcement work, pushing up hidden project expenses.
✅ Solution: Confirm feasible span range combining local foundation construction difficulty and engineering budget.
Span Selection Reference for Different Industries
| Industry Scene | Recommended Span | Core Priorities | Applicable Crane Type |
| Manufacturing Workshops | 10–25m | Material flow efficiency, indoor space optimization | Single girder gantry crane |
| Steel Mills & Heavy Fabrication | 20–40m | High load capacity, heavy-duty structural design | Double girder gantry crane |
| Logistics Yards & Warehousing | 18–32m | Maximize storage density and smooth truck passage | Single / Double girder optional |
| Container Handling Yards | ＞30m (for RTG/RMG systems) | Expand stacking rows and improve container handling throughput | Heavy-duty double girder gantry crane(ex.harbor freight gantry crane) |
| Hydropower, Dam, Port Projects | Customized dimension | Adapt to complex site terrain and special construction demands | Custom engineered gantry crane |
Procurement Insight: Span and Cost Are Not Directly Proportional
Most buyers hold the stereotype that larger span definitely means higher purchasing cost, while the actual cost variation follows non-linear rules:
- Minor span adjustment within ±1–2 meters barely causes obvious change on total manufacturing and installation cost.
- Large-scale span expansion will substantially increase steel beam weight and wheel bearing load, bringing remarkable cost growth.
- Optimized span matching structural mechanical features can effectively cut redundant material waste and achieve better cost control effect.
Choosing cost-effective span instead of pursuing maximum or minimum size helps customers obtain optimal cost-performance ratio.
Practical Recommendations
- Invite professional technical engineers to verify and confirm the final span specification combined with actual working parameters.
- Avoid span design only depending on site width; comprehensively take lifting tonnage, working frequency and rail construction conditions into consideration.
- For span over 30 meters, prioritize double girder structure to guarantee overall rigidity and anti-deformation performance.
- Adopt conservative span design for temporary working sites and frequently changed operation ranges.
- Conduct repeated simulation inspection on span rationality before formal production and delivery.
Accurate span selection is the key to achieving high working efficiency, safe operation and maximum long-term economic value of gantry cranes. Buyers can confirm the most suitable span specification by analyzing on-site working conditions, structural design standards, foundation constraints and future development plans.
Reasonable span configuration not only optimizes daily lifting performance, but also effectively reduces overall operation and maintenance costs throughout the whole equipment lifecycle, bringing stable and reliable handling support for diverse industrial and logistics production activities.
1. What is the span of a gantry crane?
The span of a gantry crane refers to the horizontal distance between the centerlines of the two crane rails or wheels. It determines how wide the crane can cover and how much working area is available for lifting operations.
2. How do I calculate the span needed for my gantry crane?
A practical rule is:
Required working area width + safety clearance + walkway space
You must also consider building/yard width and future expansion.
Manufacturers will provide recommended spans based on your facility layout.
3. How do I know if my gantry crane span selection is correct?
A correct span selection should satisfy:
- Covers all required working areas
- Fits the site layout
- Meets design standards for stress and deflection
- Stays within your budget
- Ensures long-term safety and low maintenance
Manufacturers will usually provide drawings and simulations for confirmation.
