Selecting the correct lifting height for a gantry crane is one of the most critical steps in project planning and equipment procurement. Choosing the wrong height can cause installation difficulties, insufficient vertical clearance, limited lifting range, operational safety risks, or unexpected structural modification costs. This comprehensive guide clearly explains the definition and composition of gantry crane lifting height, the hidden site factors that many buyers overlook, and provides a practical selection table and calculation method to help you determine the precise lifting height for your project and avoid common procurement errors.
What Is Gantry Crane Lifting Height?

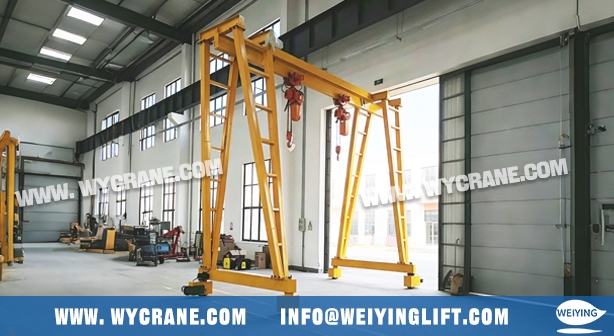

Gantry crane lifting height refers to the vertical distance between the hook’s lowest working point and its maximum safe lifting point under rated operating conditions. This parameter represents the
effective vertical working stroke of the crane, rather than the simple indoor or outdoor empty height. This value determines whether your crane can operate efficiently within your available working space, complete full-stroke lifting tasks, and safely handle the required load without collision or height limitation.
Why Lifting-Height Planning Becomes the Biggest Hidden Trap
Many buyers focus primarily on rated capacity, span, and working duty when selecting gantry cranes—but lifting height is often underestimated or determined by experience alone. Inadequate early planning will become the most easily neglected hidden risk of the entire project, which may result in:
-
The hook cannot reach the required lifting or working height, making high-position installation and stacking impossible
-
Insufficient vertical clearance under overhead beams, pipelines, or HVAC ducts, causing operational restrictions
-
Large equipment and finished goods failing to pass smoothly under the gantry, blocking on-site logistics routes
-
Added project cost and construction delays due to on-site redesign or steel structure extensions
Correct and early lifting-height planning effectively eliminates rework and modification risks, helping avoid costly corrections and ensuring long-term stable equipment operation.
Professional Lifting Height Breakdown
A standard effective lifting-height configuration is composed of four core dimensions, which together constitute the actual usable lifting range. Mastering these items is the premise of accurate selection:
-
H1: Ground to hook low point: The minimum vertical distance from the floor to the hook’s lowest position, ensuring no dead angle for ground material pickup.
-
H2: Hook low point to hook high point: The valid lifting stroke of the hoist, which is the core working height of the crane.
-
H3: Additional clearance required for the load: Reserved space for load height, slings, and lifting accessories to prevent top collision during hoisting.
-
H4: Reserved safety clearance: Standard safety margin for operational shaking and on-site tolerance.
Understanding these sections ensures accurate selection and prevents clearance issues during daily lifting and translation operations.
Hidden Factors Affecting Lifting Height
Many on-site spatial constraints are invisible in design drawings and can only be confirmed through actual field verification. These overlooked site conditions significantly affect the required gantry crane lifting height:
-
Overhead beams, roof trusses or light steel structures that occupy vertical space
-
HVAC ducts, power cables, cable trays and fire-fighting pipes arranged at the top
-
Existing overhead cranes, fixed equipment and storage frames on site
-
Actual clear height of workshop door openings and passageways
-
Maximum height of on-site trucks, forklifts, or transport vehicles for loading and unloading
Ignoring these hidden obstacles often leads to height miscalculations, resulting in crane collision risks and restricted operating range after installation.
Lifting Height Calculation Formula
To avoid empirical estimation errors, the industry adopts a practical, engineering-friendly calculation method applicable to all standard gantry cranes:
Required Lifting Height = Load Height + Ground Clearance + Safety Margin + Hoist/Hook Size
This formula covers load dimension, operational reserved space, safety tolerance and equipment self-height. It ensures the crane has sufficient vertical space to lift, rotate, and transport loads freely without collision or operational risk.
Common Lifting-Height Selection Mistakes & Solutions
| Mistake | Result | Corrective Solution |
| Estimating height without onsite measurement | Hook effective height is either insufficient or excessively redundant | Perform full onsite dimensional measurement and record all obstacle heights |
| Ignoring building overhead obstacles | Crane or lifted goods collide with beams or pipes | Add unified obstacle avoidance clearance during height design and calculation |
| Not considering overall load size and height | Tall objects cannot be lifted or translated smoothly | Increase customized lifting height or adopt a high-lift hoist structure |
| Choosing the wrong crane type blindly | Unnecessary procurement cost or insufficient functional performance | Select a crane structure and height specification strictly suited to the actual working scenario |
Gantry Crane Lifting Height & Model Selection Table
The following reference table summarizes matching crane types, standard lifting height ranges and scenario advantages for mainstream working conditions, helping buyers complete rapid preliminary selection:
| Working Scenario | Recommended Crane Type | Typical Lifting Height Range | Key Advantages |
| Standard warehouse daily lifting and material handling | Single-girder gantry crane | 3–6 m | Cost-effective, lightweight structure, flexible operation and wide adaptability for general workshops |
| Outdoor yard operation and large equipment handling | Double-girder gantry crane | 6–12+ m | Higher structural stability, larger lifting height and heavy-load capacity, suitable for outdoor heavy-duty work |
| Compact indoor workshops with limited overhead space | Low-profile gantry crane | 2.5–5 m | Minimizes structural height occupation and maximizes usable vertical space |
| Equipment maintenance, temporary and mobile lifting operations | Portable gantry crane | 2–4 m (adjustable) | Movable, lightweight, quick assembly and flexible height adjustment for temporary tasks |
| Container yards and large-span outdoor logistics areas | Rail-mounted gantry crane (RMG) | 10–20+ m | High working efficiency, super-large lifting height and coverage for large-scale logistics scenarios |
| Precision equipment lifting and assembly operations | Electric hoist gantry crane | 3–10 m | Smooth lifting operation, low vibration and high positioning accuracy |
Use this table as a preliminary selection guide when communicating technical requirements with suppliers, and fine-tune parameters according to actual site conditions.
Practical Tips for Buyers
To ensure you choose the correct gantry crane lifting height and avoid post-installation adaptation problems, follow these practical guidelines:
-
Always measure onsite precisely—never rely on visual estimation or empirical data
-
Request a professional lifting-height dimension drawing from your supplier before confirming your order
-
Choose height-adjustable crane models if the working area or load specifications change frequently
-
Provide suppliers with complete information including load dimensions, official workshop drawings and on-site obstacle photos
-
Clarify all required lifting tasks to help manufacturers configure the most matching height parameters
The more detailed and accurate the site information provided, the more reasonable and reliable the final crane configuration will be.
Conclusion
The lifting height of a gantry crane is a core parameter that directly determines project operational efficiency, construction safety and overall cost control. By fully understanding the composition of effective lifting height, accurately identifying hidden on-site obstacles, and applying standard calculation formulas and scenario-based selection tables, buyers can effectively avoid costly design errors and parameter mismatches. A scientific lifting height selection ensures safe, stable and long-term efficient operation of the gantry crane, maximizing the return on equipment investment for industrial projects.
FAQ
1. How can I maximize lifting height in a low ceiling workshop?
Use a low-headroom hoist, lowered-profile gantry crane, or optimize the hoist C-dimension. These solutions can increase available lifting height without raising the building.
2. Is higher lifting height always better?
Not necessarily. A higher height increases cost, hoist size, and crane weight. The best choice is the minimum height that safely meets job requirements.
3. Can gantry cranes be made with adjustable lifting height?
Yes. Portable and mobile gantry cranes often feature adjustable heights, ideal for maintenance or temporary tasks. Industrial fixed gantry cranes typically require customized design instead.
