Rated load capacity

100 ton

150 ton

200 ton

300 ton

ground pressure (kg/cm2)

11.5

11

11.5

6.5

Grade ability

2%

4%

4%

4%

lifting speed - full load (m/min)

0~2

0~1

0~2

0~1

lifting speed -non load (m/min)

0~5

0~4

0~3

0~3

run speed ,full load (m/min)

0~20

0~20

0~20

0~20

running speed , non load (m/min)

0~35

0~35

0~35

0~35

working Ambient temperature

-20°C~+50°C

-20°C~+50°C

-20°C~+50°C

-20°C~+50°C

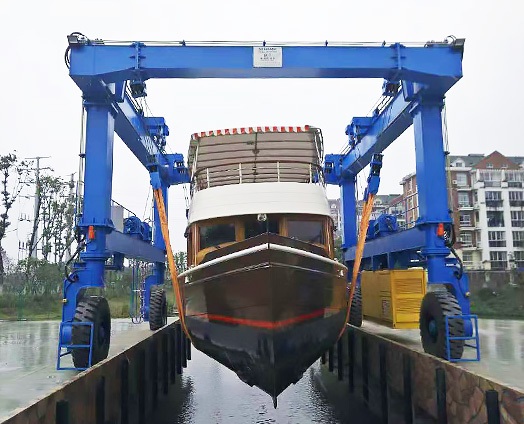

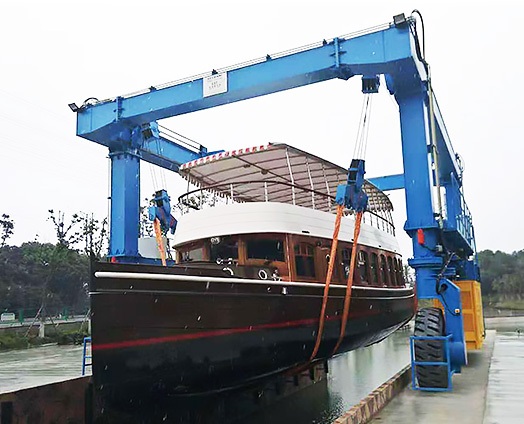

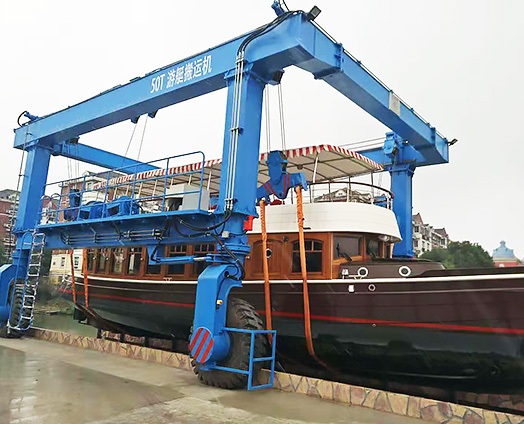

Boat lift crane can be customized from 50 tons to 800 tons

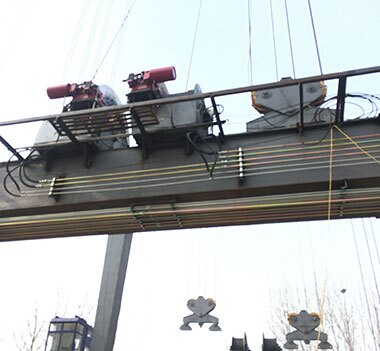

Lifting Mechanism (winch)

Lifting mechanism adopts the load-sensitive hydraulic system , the lifting point distance can be adjusted to keep the simultaneous lifting of multi-lift points and output power according to the load conditions , so that the energy consumption of the whole machine is reduced.

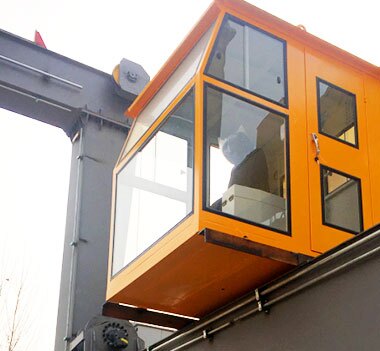

Cabin control

The high-strength frame is welded by high quality profile.and the high-quality cold rolling plate is finished by the CNC machine.

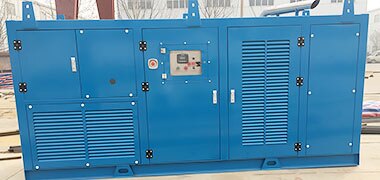

Diesel generator with mute box

It adopts full hydraulic driving , build-in diesel generator provide power good liquidity Brand: Cummins brand.

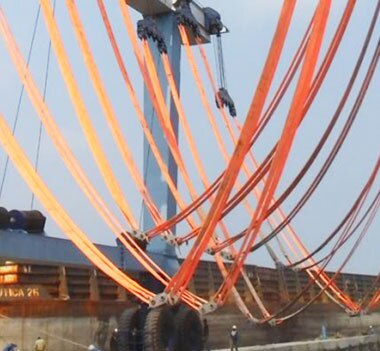

Firm belt

Low cost on the daily operation , it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting .

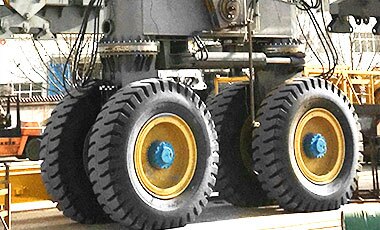

Traveling mechanism

It can realize 12 azimuth walking functions such as straight line, oblique line, transverse line, in-place rotation and Ackerman turning etc. to meet the requirements of different working conditions , and it have 4% climbing ability.
