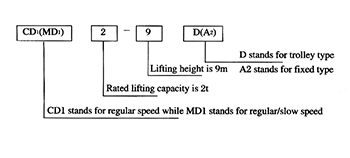

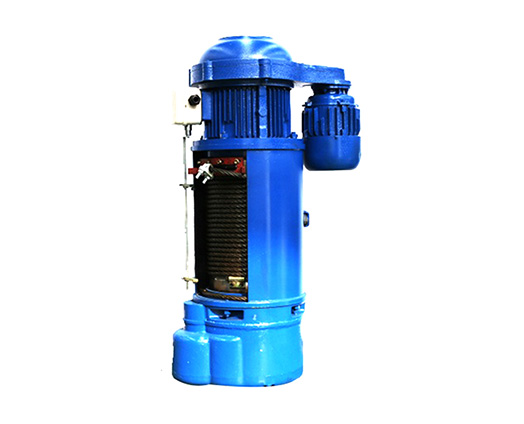

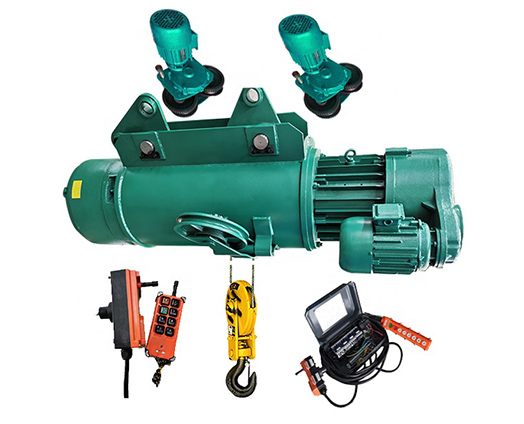

Single speed CD1, Double speed Md1,Explosion-proof, Metallurgic, Low headroom hoists etc.

Structure Layout

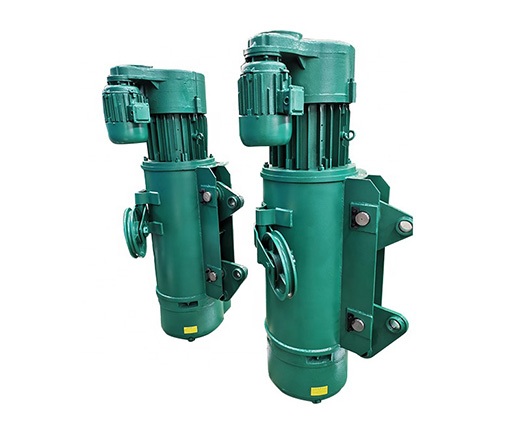

Stationary type and operation type both included.

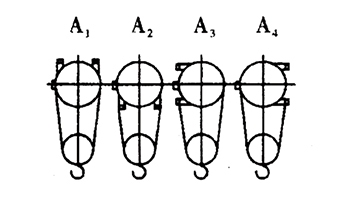

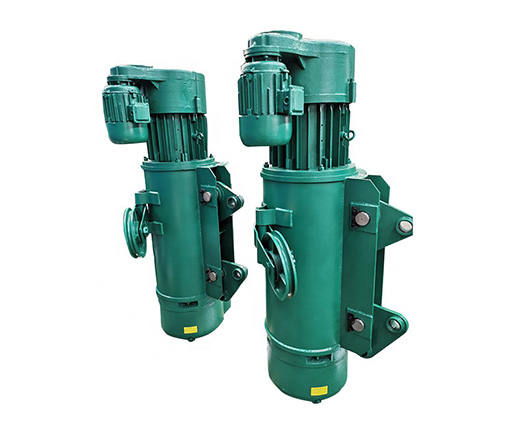

As shown on the right: A1、A2、A3、A4 separately fixed on the up, down, left and right side.

A2 always used on the trolley of double beam crane with hoist.

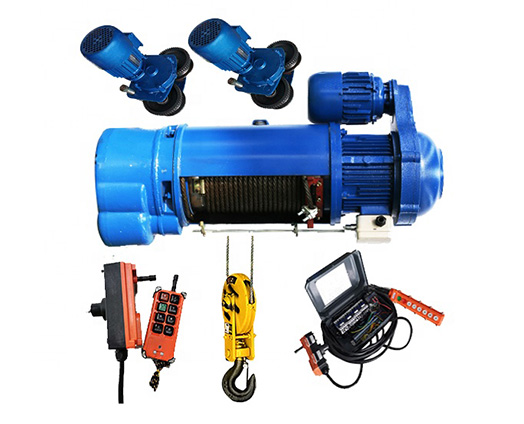

It is usually operation type without special explanation, traveling along with beams.

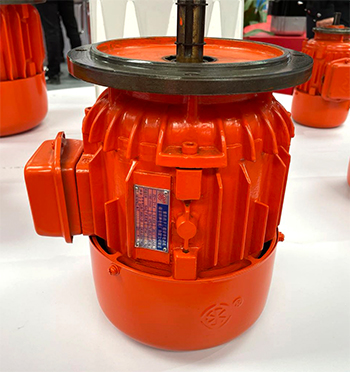

Lifting Motor

1.Tapered rotor three-phase asynchronous braking motors

2.Stable operation, small volume and light weight

3.Safety in use, convenient maintain

4.B or F class insulation, IP44, IP54 protection

MD type hoist fitted with ZDS type double speed motor, its ratio of usual speed and low speed is 10:1.

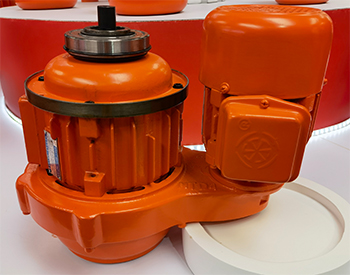

Travelling Motor

1.Use tapered rotor of three-phase asynchronous braking motors

2.Stable starting,safe braking, can be used with reducer

3.B grade or F grade of insulation，closed structure,motor protection grade is IP44 or IP54.

4.Brand: Nanjing special motor

Reducer

1.Three-level dead axle helical gear rotating body, long service life

2.Gear and the axle made by alloy steel after heat treatment, high intensity

3.Box and cover made from superior cast iron, fully covered

4.Great speed ratio, high accuracy

5.Compact structure, silent operation, high efficiency

Rope Drum

1,Made of cast iron or seamless steel tube, light weight, transmit the dynamic force by splines.

2,Coil casing made from superior cast iron, high intensity.

3,The drum is the central part of the hoist.

It connect with travelling mechanism above through balance beam,

with reducer and motor both sides, and with wire rope and hook below.

Installed limited guide bar equipment to the up front of the outer cover.

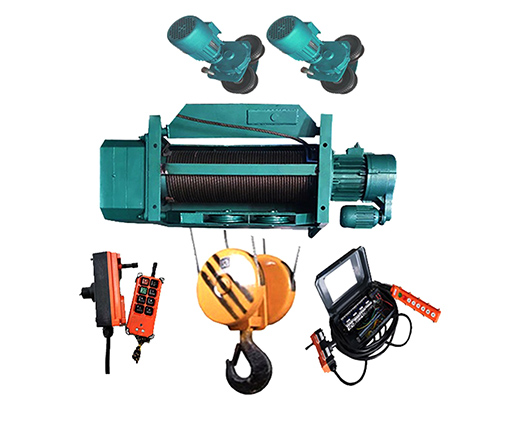

Travelling Mechanism

The wheel tread is straight when used with box type girder or H beam.

The wheel tread is circular arc when used with I-beam.

Its travelling speed is 20m/min, but 30m/min is possible;

 if 1~5t capacity with 12m or higher lilfting height, a driven trolley is necessary.
