Jib Crane Foundation Requirements: Concrete, Anchors and Load Considerations
Date：2026-09-08 View：51

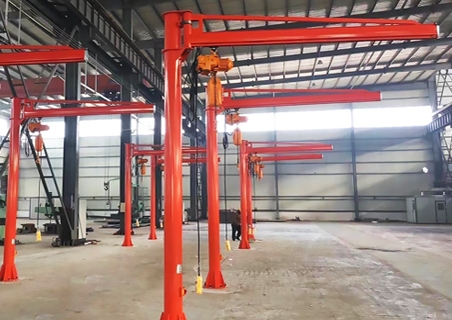

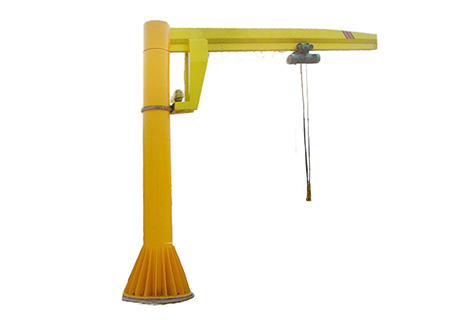

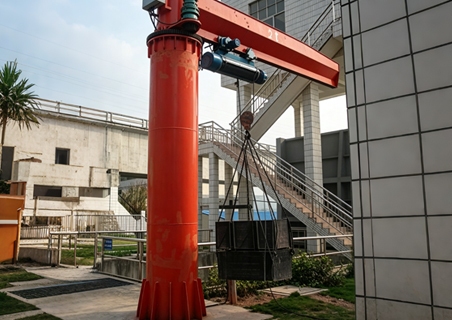

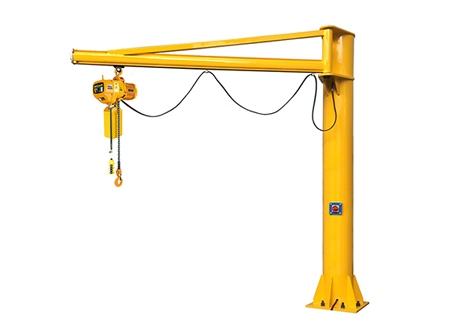

A properly engineered foundation is the single most critical factor in ensuring the safe, long-term operation of any jib crane. Whether you are installing a floor-mounted pillar jib, a wall-mounted cantilever crane, or a mast-type system, the interface between the crane and the building structure must withstand complex combinations of vertical, horizontal, and overturning forces. This guide covers the essential foundation requirements, concrete specifications, anchor bolt selection, and load considerations every engineer and facility manager should understand. Pre-Design Site and Soil Assessment Before pouring concrete, a thorough site evaluation is mandatory. The soil bearing capacity directly dictates the size and depth of the foundation pad. A geotechnical report should confirm that the subgrade can support not only the dead weight of the crane but also the dynamic loads generated during lifting and slewing. Key pre-design factors include: Soil bearing pressure: Typically requires 2,000–4,000 psf for standard industrial soils; weaker soils may necessitate deep foundations or soil stabilization. Underground obstructions: Utilities, vaults, or existing footings can interfere with anchor embedment depth. Environmental exposure: Freeze-thaw cycles, chemical exposure, and seismic zones influence concrete mix design and reinforcement detailing. Building integration: Wall-mounted and insert-style jib cranes require verification of the existing...
