5 Ton Overhead Crane: A Comprehensive Guide to Choosing the Right Equipment
January 22 , 2026
5 tonoverhead crane also known as 5-ton bridge crane, is one of the most widely used lifting solutions in industrial facilities. It consists of a bridge beam, end carriages, electric hoist or trolley, runway system, and electrical control parts that work together to lift and move loads safely within a fixed rectangular area. Overhead cranes are essential for improving production efficiency, ensuring safe material handling, and reducing labor intensity.
5 ton bridge cranes are commonly used in workshops, assembly lines, machine shops, logistics centers, steel warehouses, and maintenance facilities. Based on structural design and installation conditions, 5-ton bridge cranes can be manufactured in different configurations such as single-girder overhead crane, double-girder overhead crane, underhung overhead crane, European-standard overhead crane, and freestanding designs overhead crane.
Xinxiang Weiying Machinery Equipment Co., Ltd. is a trusted lifting equipment manufacturer and exporter with strong technical expertise and 25 years of engineering experience. We integrate both industry and trade, allowing us to provide competitive prices, flexible customization, and fast delivery. All our cranes and lifting solutions comply with international standards and are CE-certified for safety and reliability. With strict quality control, durable products, and responsive after-sales service, we ensure every customer receives a dependable and cost-effective lifting solution. Choosing Weiying means choosing quality, professionalism, and long-term cooperation.

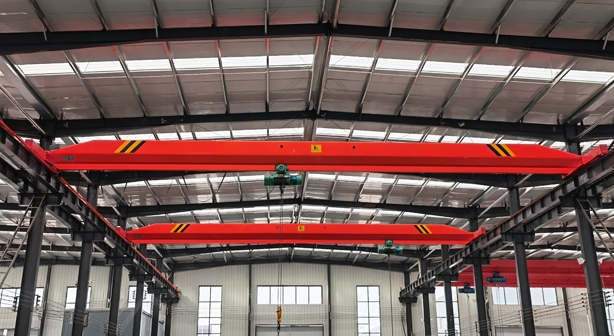

5 Ton Single Girder Overhead Crane
A cost-effective and versatile lifting solution for light to medium-duty material handling.
Simple structure with easy installation and low maintenance.
Ideal for general workshops, warehouses, and small manufacturing facilities.
Stable operation with compact design to optimize building space.
Economical choice with fast delivery and wide adaptability.

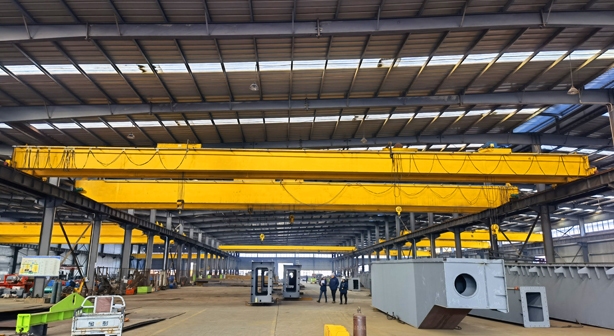

5 Ton Double Girder Overhead Crane
A heavy-duty, high-stability lifting system designed for demanding operations.
Higher rigidity and greater lifting stability than single girder bridge crane.
Suitable for long lifting distances, frequent cycles, and harsh working conditions.
Supports more advanced lifting devices and auxiliary hoists.
Offers better hook height and overall performance for intensive applications.

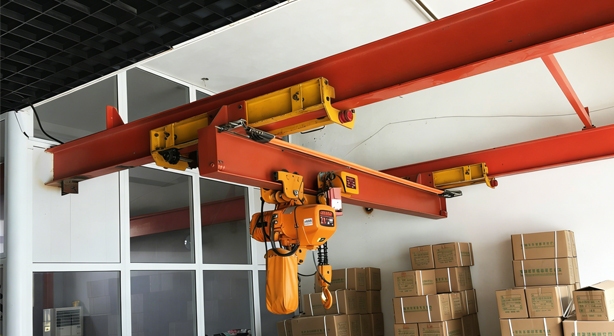

5 Ton Underhung Bridge Crane
A lightweight suspension crane designed for limited-space or low-headroom buildings.
Runs on the bottom flange of beams, saving structural space.
Ideal for light-duty applications and workshops with height restrictions.
Easy installation without major building reinforcement.
Supports flexible layouts such as curved tracks and multi-bay coverage.
5 Ton European Overhead Crane
A high-performance, low-noise, and energy-efficient crane built with advanced European technology.
FEM/DIN standard design for higher precision and longer service life.
Compact structure offering maximum lifting height and low wheel pressure.
Equipped with frequency converters for smooth, anti-sway operation.
Reduced lifecycle cost due to less maintenance and energy savings.

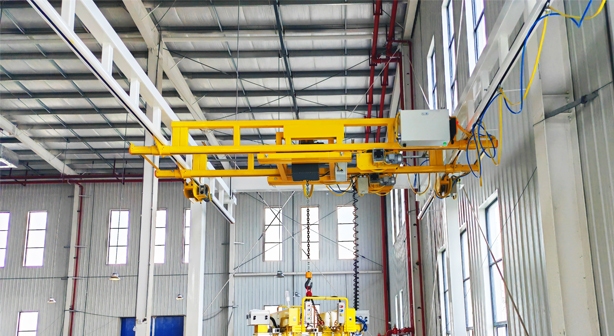

5 Ton Free-Standing Bridge Crane
A self-supporting crane system ideal for buildings without adequate structural support.
No need for building reinforcement; easy to install and relocate.
Highly flexible for workshops, temporary workstations, and rented facilities.
Stable, safe, and reliable operation with independent columns and runways.
Suitable for customized layouts to match specific workflow needs.
Types of 5 Ton Overhead Cranes
Below is a detailed overview of the major types of 5-ton overhead cranes, including their structural features, parameter,application scenarios, benefits, and limitations.

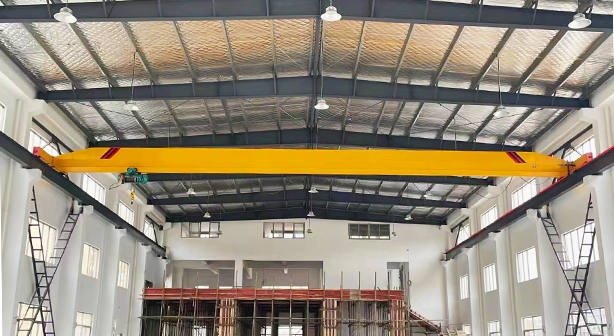

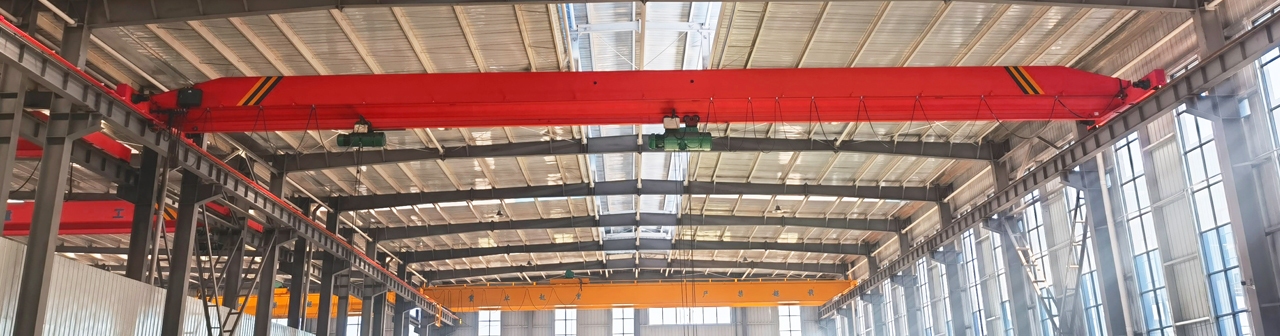

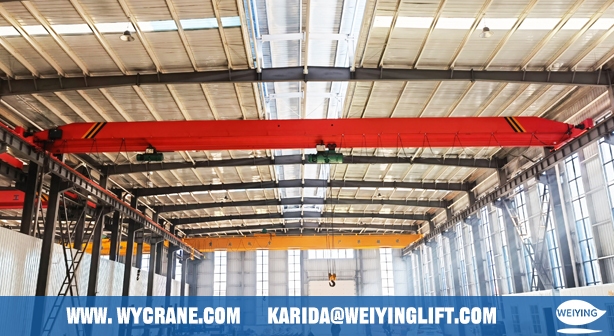

1. Single Girder Overhead Crane
Features
A 5 ton single girder overhead crane uses one main beam with an electric hoist running on the bottom flange. Its lightweight structure, simple installation, and low cost make it the most popular model for light to medium-duty material handling.
Key Parameters
Span range: 7.5–22.5 m
Lifting height: 6–18 m
Duty class: A1–A3 (light duty)
Applications
General fabrication workshops
Warehouses and storage facilities
Machinery manufacturing
Maintenance and repair stations
Light production lines
Advantages
Lowest price among 5 ton overhead crane types
Quick and easy installation
Requires minimal building reinforcement
Low operation and maintenance cost
Limitations
Lower lifting height than double-girder systems
Not suitable for high-frequency or heavy-duty operation
This type is ideal for buyers looking for economical5 ton bridge crane solutions.

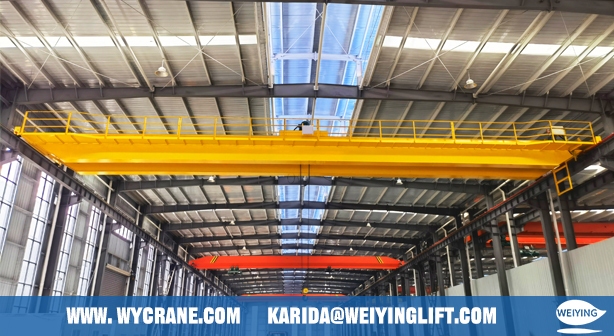

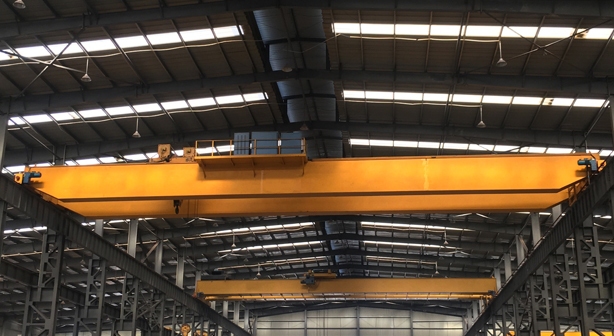

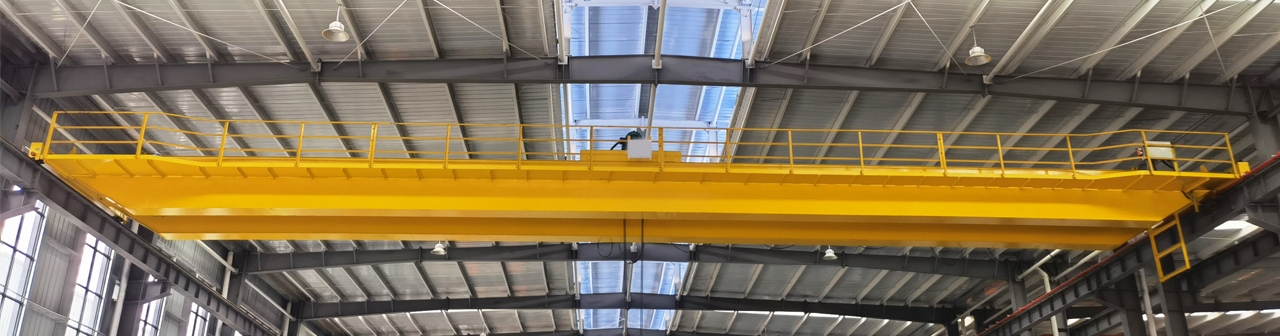

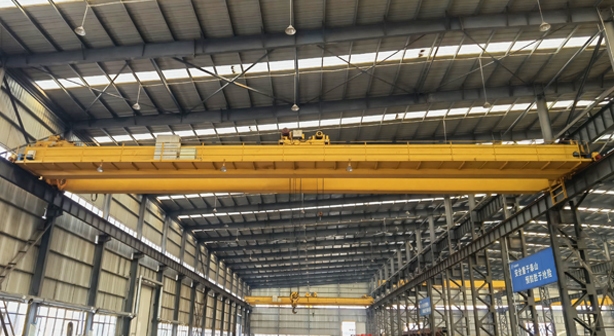

2. Double Girder Overhead Crane
Features
A 5 ton double girder overhead crane consists of two main girders with a trolley operating on top of them. It offers a higher hook position, improved rigidity, and better stability for demanding applications.
Key Parameters
Span range: 7.5–28.5 m
Lifting height: 8–30 m
Duty class: A4–A6 (medium duty)
Applications
Steel structure workshops
Heavy manufacturing
Large-span factory halls
Precision material handling environments
Advantages
Higher hook height and larger lifting range
Suitable for long spans and continuous operation
Easy to add maintenance walkways, platforms, or operator cabins
Better for accurate load positioning
Limitations
Higher cost than single-girder cranes
Requires a stronger runway and building support
This configuration is ideal for factories requiring high stability, accuracy, and working efficiency.

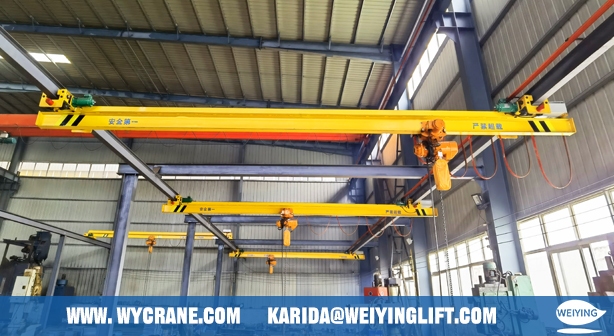

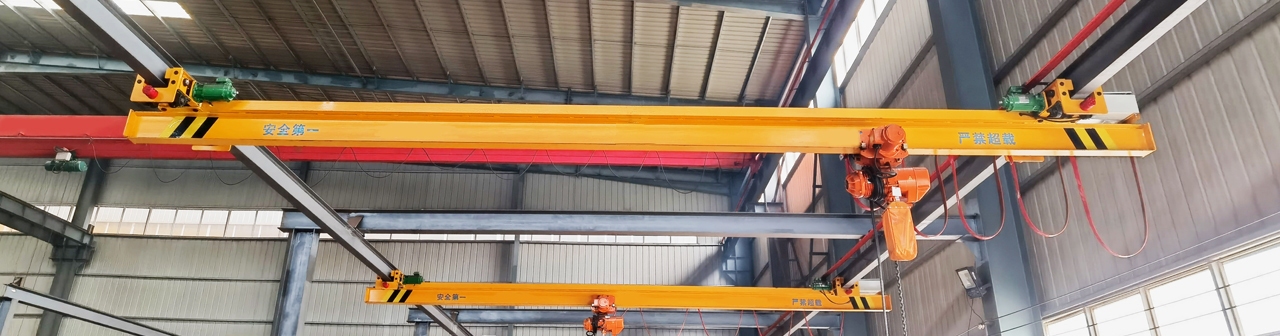

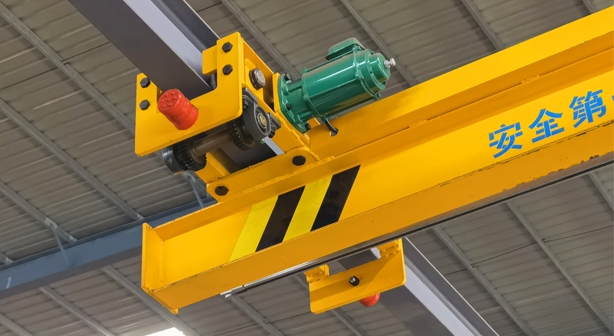

3. Underhung Overhead Crane
Features
An underhung 5 ton overhead crane runs on the underside of runway beams, making it ideal for facilities with restricted headroom or limited building height.
Key Parameters
Span range: 3–20 m
Lifting height: 4–12 m
Duty class: A3–A4
Applications
Assembly lines
Light-duty processing workshops
Small material handling areas
Facilities with low ceilings
Advantages
Excellent space-saving design
Works well with weaker building structures
Easy to integrate into production workflow
Limitations
Limited lifting height
Not suitable for heavy loads or large spans
A perfect choice for buyers needing a low-headroom 5 ton bridge crane solution.

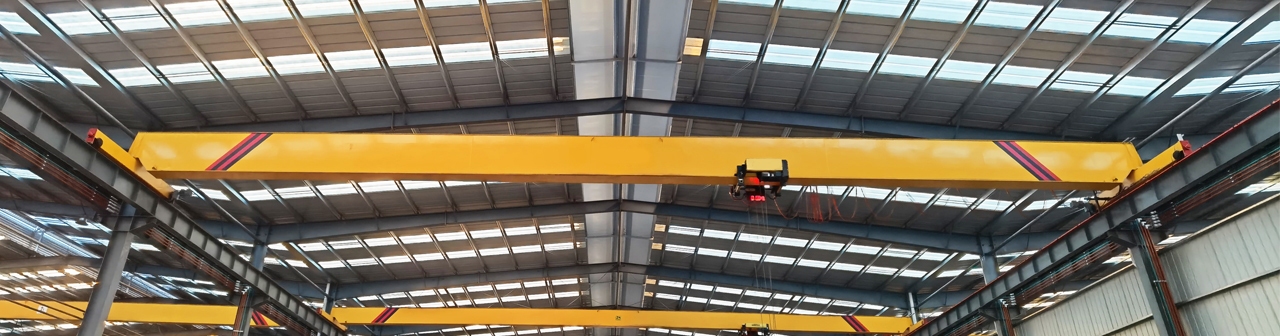

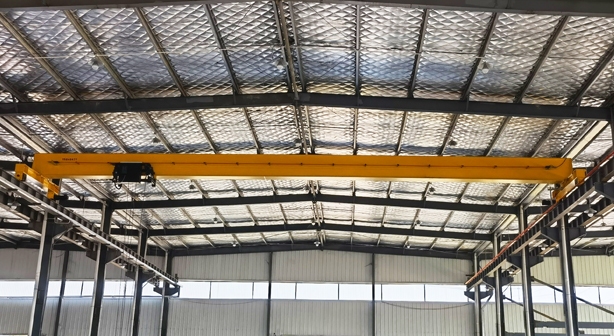

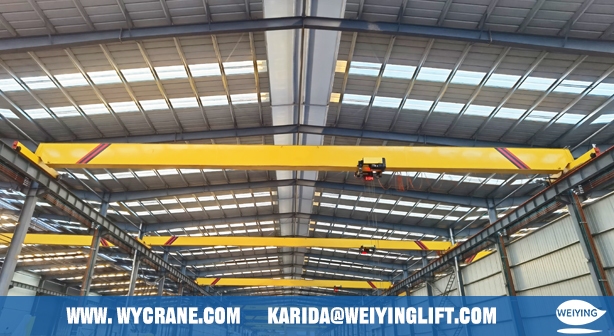

4. European Standard Overhead Crane
Features
A European standard 5 ton overhead crane adopts FEM/DIN technology, low-headroom hoists, compact structures, and advanced electrical systems such as VFD controls.
Key Parameters
Span range: 9.5–24 m
Lifting height: 6–15 m
Duty class: A3–A5
Applications
Precision machining
Automotive production lines
High-tech manufacturing
Clean and dust-free industries
Advantages
Smooth, quiet, and energy-efficient operation
VFD variable speed control for safer, smoother lifting
Higher lifting height due to compact design
Reduced maintenance and longer working life
Limitations
Higher cost compared with standard models
Usually requires professional installation and commissioning
This is the best choice for buyers seeking a premium 5 ton overhead crane with European performance standards.

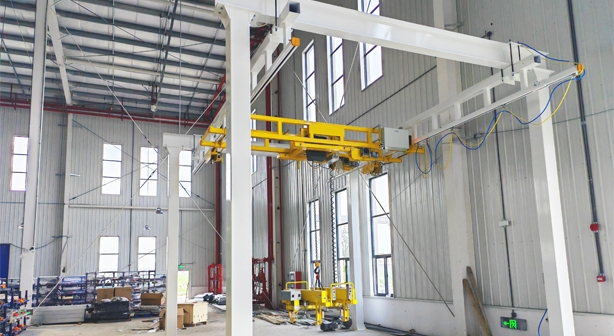

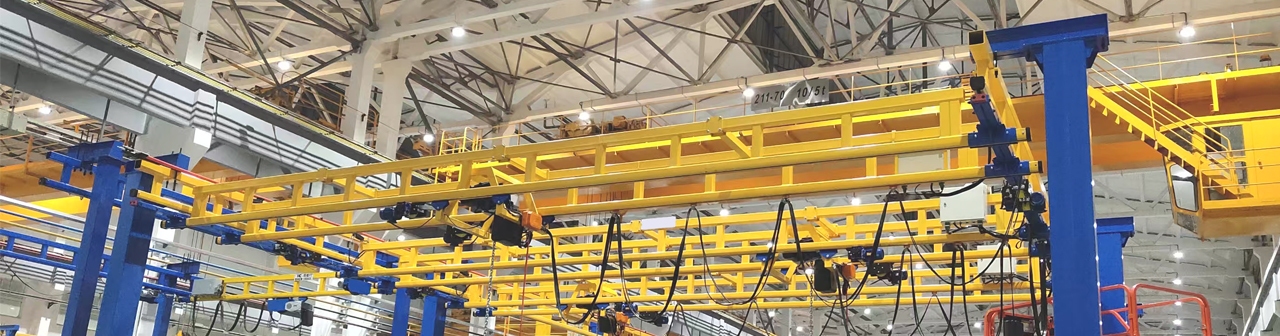

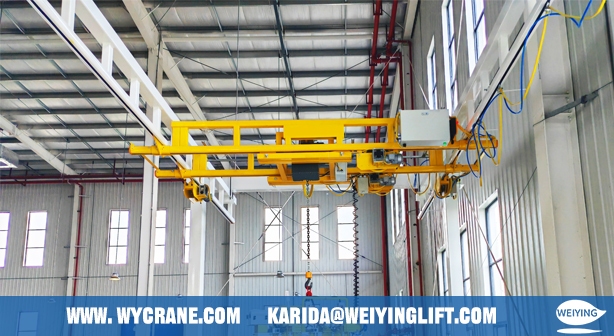

5. Freestanding Overhead Crane
Features
A freestanding 5 ton overhead crane—also called a self-supporting crane—has its own columns and runway system. It does not rely on the building structure.
Key Parameters
Span range: 3–11 m
Lifting height: 6–12 m
Duty class: A3–A5
Applications
Buildings without strong beams
Temporary production lines
Rented workshops
Expansions or areas where structural modification is not allowed
Advantages
No building reinforcement required
Can be moved, relocated, or expanded
Flexible layout, ideal for evolving production lines
Limitations
Takes up floor space due to columns
Higher structural cost compared with standard overhead cranes
This type is perfect for customers looking for a portable, modular, and flexible 5 ton overhead crane system.
5 Ton Overhead Crane Buying Guide
Crane Type
Main Features
Suitable For
Single Girder bridge crane
Economical, lightweight
General factories, light workshops
Double Girder bridge crane
High hook height, high stability
Heavy industry, long spans
Underhung bridge crane
Best for low ceilings
Assembly lines, small workshops
European Standard bridge crane
Compact, precise, VFD
High-end manufacturing
Freestanding bridge crane
Self-supporting structure
Buildings without runways
This table helps buyers quickly compare which crane type matches their building conditions and lifting requirements.
5 Ton Overhead Crane Price
Crane Type
Common Span Range
Lifting Height
Working Class
Price Range (USD)
Key Remarks
Single Girder Overhead Crane
7.5-22.5 m
6–18 m
A1-A3
3100 – 8,600
Light weight and easy installation, suitable for light-load hoisting in workshops.
Double Girder Overhead Crane
7.5-28.5 m
8-30m
A4-A6
5,800-22,860
Strong load-bearing capacity and good stability, equipped with trolley operation.
Underhung Overhead Crane
3-20 m
4-12m
A3-A4
3,100-8,600
No ground track required, suspended at the bottom of factory steel beams. Suitable for small-span and light-duty workshops.
European-Style Overhead Crane
9.5-24 m
6-15m
A3-A5
5900 – 15000
Lightweight design, low energy consumption and low noise, complying with EU standards, hot-selling for foreign trade.
Freestanding Overhead Crane
3-11 m
6-12m
A3-A5
5000 – 39,971
Equipped with independent steel structure track support, no reliance on the factory building. The support cost accounts for 40%-50% of the total price.
Supplementary Factors Affecting Price
1. Crane Configuration & Components Quality
The choice of electrical and mechanical components has a major impact on pricing. Higher-grade brands—such as Siemens, Schneider, ABB, SEW, IGUS, and ABUS—typically increase cost but offer superior reliability and longer service life.
Electric chain hoist: Lower cost, ideal for light-duty and compact spaces. European-style hoists with VFD speed control are more expensive but deliver premium performance.
3. Control Method (Pendant, Remote Control, Cabin)
Control options affect both convenience and cost:
Pendant control: Standard, lowest price
Wireless remote control: Medium price, better safety and flexibility
Cabin control: Highest cost, best for long-span or high-duty operations
4. Power Supply System
Different power supplies may require special transformers, cables, or conductor systems:
380V / 400V / 415V (50Hz)
460V / 480V (60Hz) Longer power lines, festoon systems, or busbar conductors increase cost.
5. Environmental & Working Conditions
Special working environments require enhanced protection, which increases manufacturing cost:
High temperature (steel plants)
Dusty workshops (cement, mining)
Corrosive environments (chemical plants)
Outdoor use (requires rain cover, wind-proof devices)
6. Installation, Transportation & Packaging
Additional services beyond the crane itself also affect the overall price:
Overseas shipping and container loading
On-site installation or remote installation support
Export-standard packaging
Custom steel support beams or runway systems
7. Certification & Compliance Requirements
If buyers require additional certifications such as CE marking, SGS inspection, ISO documentation, or factory audits, the price may increase accordingly.
Key Factors to Consider When Choosing a 5 Ton Overhead Crane
Selecting the right 5 ton overhead crane is critical for safe, efficient, and long-term material handling. Below are the most important factors buyers should evaluate before purchasing a 5 ton bridge crane for their workshop or warehouse.
1. Load Requirements
Choose a 5 ton overhead crane that supports your current lifting needs and allows room for potential growth.
Never exceed the crane’s rated load—overloading causes mechanical stress, shortens service life, and creates serious safety risks.
Consider whether your application may later need higher capacity or a double-girder upgrade.
2. Lifting Height & Span
The height and span of your building determine what type of 5-ton crane system is suitable.
Low building height → choose an underhung crane or European low-headroom crane.
Large span or long travel distance → a double girder overhead crane provides better hook height and stability.
3. Duty Cycle or Working Class
The crane’s work duty class directly impacts its durability and service life:
A3: Light duty (maintenance, occasional lifting)
A5: Medium duty (daily lifting operations)
A6: Heavy duty (continuous production)
Choose the correct class based on usage frequency to ensure long-term reliability of your 5 ton bridge crane.
4. Installation & Dismantling Requirements
The site conditions affect the crane design and pricing:
Strong building beams → standard single girder or double girder overhead crane
Weak building structure or rented workshop → choose a freestanding overhead crane
Limited space → consider underhung or European-style compact cranes
5. Safety Systems
A high-quality 5 ton overhead crane must include essential safety features such as:
Overload limiter
Lifting & travel limit switches
Emergency stop
Phase/voltage protection
Anti-drop protection
Anti-sway system
Collision avoidance
Digital load display
These systems ensure safe operation and compliance with OSHA/CE/ISO standards.
6. Maintenance & Service
Reliable maintenance is essential for long-term operation:
Choose cranes using standard electrical components (Siemens, Schneider, etc.).
Installation Guidance, Operation Support & Maintenance
Reliable After-Sales Service
We provide complete technical solutions to ensure every customer receives the most suitable lifting equipment.
Professional Drawings & Technical Overview：We offer detailed layout drawings and technical documents to help you fully understand your crane configuration before production.
Strong Customization Ability：From lifting height and span to color, logo, special work environments, automation, explosion-proof, or European-style crane designs, our engineering team can customize every specification according to your needs.
Engineering Consultation：Our experts can analyze your workshop size, working conditions, and lifting tasks to provide accurate and efficient crane recommendations.
We ensure smooth installation and long-term stable operation for all customers.
Remote Installation Guidance：We offer step-by-step remote installation support through video, drawings, and real-time technical assistance.
Operation Training：We help your team learn safe operation, daily inspection, and proper use of the crane.
Maintenance Assistance：Regular maintenance guides, troubleshooting support, and spare parts supply keep your crane running reliably with minimized downtime.
Customer satisfaction continues long after delivery.
Fast Response：Our after-sales team provides quick responses to technical inquiries and service requests.
Lifetime Technical Support：We offer continuous technical guidance throughout the crane’s service life.
Spare Parts Availability：Original spare parts and upgrades can be supplied anytime to ensure stable performance.
Warranty Service：All products come with a warranty and strict quality assurance for long-term reliability.
Safety Mechanisms & Performance Standards
Safety and compliance are at the core of every crane we design and manufacture.
International Certifications：All our lifting equipment complies with CE standards and other globally recognized certifications, ensuring full conformity with safety, quality, and performance requirements in international markets.
Strict Quality Control：Every crane undergoes rigorous inspection, load testing, and electrical safety verification before delivery to guarantee reliable and secure operation.
Advanced Safety Features：We provide overload protection, emergency stop systems, limit switches, anti-sway control, and other essential safety devices to reduce operational risks.
Compliance with Industry Standards：Our products follow FEM, ISO, and DIN specifications for structural design, safety factors, and long-term durability.
Annual: Full inspection + load test per OSHA/ISO. High-frequency use requires more frequent servicing.
3. Which of these statements about operating overhead cranes is true ?
Operators must perform a pre-operation safety inspection before use. Other correct rules:
Never overload
Never pass loads over people
Lift with hook centered over load
Operate smoothly without sudden movements
4. How to select an overhead crane company ?
Choose a supplier based on:
Technical capability (drawings, customization)
Certifications (CE/ISO/FEM/OSHA)
After-sales support (installation + spare parts)
Project experience
Transparent pricing & delivery time
Suitable crane companies provide professional design, stable quality, and full service for 5 ton bridge crane projects.
About us
With 34 years of manufacturing experience and 12 years of export expertise, we have built a dual advantage of professional qualifications and a global presence. Our business covers more than 100 countries and regions across Asia, Europe, the Americas, Africa, and Oceania. We are certified under the ISO management system and hold CE product certifications. Our main product lines include six major series—electric hoists, electric winches, gantry cranes, bridge cranes, marine cranes, and portal cranes—comprising nearly 100 different models.
