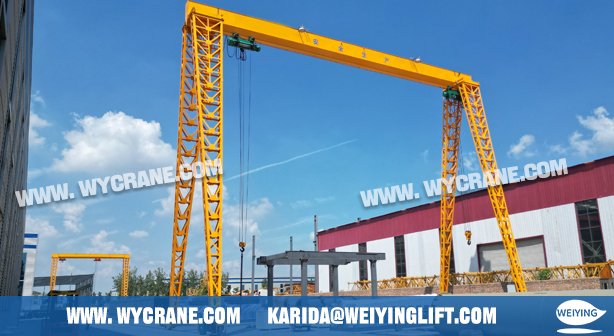

A 5 ton gantry crane is one of the most widely used lifting solutions in industrial, construction, warehouse, and outdoor material-handling environments. It provides a perfect balance of lifting capacity, mobility, cost-effectiveness, and installation flexibility. Whether used indoors or outdoors, a 5 ton gantry crane is ideal for loading, unloading, assembly, maintenance, and short-distance material transfer tasks.
Thanks to its simple structure and wide application, the 5 ton gantry crane has become a popular choice among global buyers, especially in markets such as Southeast Asia, the Middle East, Africa, and South America. This article introduces the product types, technical parameters, applications, pricing factors, and real project cases, helping buyers understand how to select the right 5 ton gantry crane for their business.
 |
 |
Different industries require different gantry crane structures. A 5 ton gantry crane typically comes in the following types:
The most common and cost-effective option.
Lightweight structure
Easy installation
Suitable for general material handling
Can use CD/MD electric wire rope hoist or electric chain hoist
Ideal for small workshops, repair shops, or temporary lifting sites.
Adjustable height and span
Can be equipped with manual or electric hoist
More flexible and less costly than large gantry cranes
Optional hydraulic lifting columns for height adjustment
One side runs on a rail, the other on the ground or wall-mounted runway.
Suitable for workshops with limited space
More economical than full gantry cranes
Used for heavy-duty and outdoor environments.
Strong wind resistance
Durable steel structure
Suitable for long-term outdoor service
These variations ensure that a 5 ton gantry crane can meet a wide range of lifting needs and installation conditions.
Below is a comparison of the common technical parameters for 5 ton gantry cranes:
| Model Type | Span (m) | Lifting Height (m) | Lifting Speed | Travel Speed | Features |
|---|---|---|---|---|---|
| MH Single Girder | 5–30 | 6–30 | 8 m/min | 20 m/min | Most common design, outdoor/indoor use |
| Portable Gantry Crane | 2–6 | 2–6 (adjustable) | 5–8 m/min | Optional electric wheels | Suitable for small workshops |
| Semi-Gantry Crane | 5–20 | 6–20 | 8 m/min | 20 m/min | Space-saving solution |
| Box-Type Gantry | 6–35 | 6–30 | 8–10 m/min | 20–30 m/min | Heavy-duty outdoor design |
These parameters can be customized depending on working conditions, local standards, and power-supply requirements.
A 5 ton gantry crane is extremely versatile and widely used across different industries. Its ability to operate in both indoor and outdoor environments makes it a preferred choice for many businesses. These cranes are commonly used in factories, warehouses, assembly workshops, machine maintenance areas, and open-air storage yards, especially where overhead crane installation is not possible or where mobility is required.
Industries such as manufacturing, steel fabrication, precast concrete production, logistics centers, and equipment maintenance rely heavily on 5 ton gantry cranes for loading raw materials, moving semi-finished products, lifting machinery, or assisting in equipment installation. In the construction industry, they help handle steel structures, formwork, and mechanical components efficiently. Meanwhile, small adjustable gantry cranes are popular in repair shops, automotive workshops, and light-duty industrial areas due to their mobility and simple operation.
For outdoor operations such as port cargo handling, yard cranes, and temporary lifting sites, the 5 ton gantry crane provides excellent stability and strong wind-resistance, making it a reliable solution even under challenging working conditions.
The price of a 5-ton gantry crane typically depends on several key factors:
Portable cranes are the lowest cost, while full box-type gantry cranes are more expensive due to their heavy-duty design.
A larger span or higher lifting height increases steel consumption and affects the overall price.
Higher duty class requires stronger structures and motors, adding to cost.
Voltage standards differ among countries (e.g., 380V/50Hz, 220V/60Hz, 415V/50Hz, 480V/60Hz).
Electrical components from brands like Schneider, Siemens, Chint also influence pricing.
Electric chain hoist (more economical)
Wire rope hoist (better for frequent use & higher speed)
Such as rail clamps, anti-wind devices, remote control, frequency converters, overload limiters.
A typical price range for a 5 ton gantry crane is USD 4,000 – USD 20,000, depending on configuration.
Ten days ago, we received an inquiry from a customer in Iraq who needed a custom small-sized gantry crane with adjustable height for multiple working conditions.
After technical evaluation, our engineers recommended a hydraulic lifting system, enabling the customer to adjust the working height easily and safely.
Final Specifications:
Capacity: 5 tons
Max Height: 5 meters
Max Lifting Height: 4.2 meters
Span: 2.91 meters
Equipped with electric drive wheels
Fully compliant with local industrial voltage standards
The crane has successfully completed production and factory testing, and it will be shipped to Iraq soon. This project demonstrates our ability to design custom solutions for complex work environments.
In 2022, a MH 5T-6M fully enclosed gantry crane was manufactured and shipped to Thailand. The customer required a strong, durable, and stable system for daily material handling.
Configuration Details:
Model: MH5T-6M full box-type
Capacity: 5 tons
Span: 6 meters
Lifting Height: 6 meters
Voltage: 220V / 50Hz, 3-phase
Soft start motors (0.8 kW × 2)
Variable-speed vertical drive system
Chint electri
Four-stage seamless power collector
300 mm wheels, 70 mm wheel grooves
Angle-steel sliding cable + flat cable power s
Travel Speed: 20 m/min
Control Voltage: 36V, ground operation
The crane was installed and put into service smoothly, providing excellent performance in daily lifting tasks.
A 5 ton gantry crane is a versatile, efficient, and cost-effective lifting solution suitable for a wide range of working environments. Whether used in manufacturing, construction, logistics, workshops, or outdoor yards, it provides reliable lifting performance and flexible installation options.
With various types available—single girder, portable, semi-gantry, or box-type—buyers can choose a configuration that best matches their operational needs and budget. Real project cases from Iraq and Thailand also demonstrate how 5 ton gantry cranes can be customized and adapted for different industries and working conditions.
If you need a customized 5 ton gantry crane, technical consultation, or a competitive quotation, feel free to contact us anytime. We provide professional design, manufacturing, and one-stop export services.
Yes. We offer full customization including span, lifting height, voltage, wheel type, lifting speed, travel speed, and hoist selection. Special solutions such as hydraulic adjustable gantry cranes are also available for unique working conditions.
The power supply depends on the destination country and site conditions. Common standards include 380V/50Hz, 415V/50Hz, 220V/60Hz, and 480V/60Hz. All cranes can be customized to meet local industrial voltage standards.
Yes. We offer installation drawings, videos, online technical support, and engineer guidance upon request. Local installation can also be arranged depending on the project.
With 34 years of manufacturing experience and 12 years of export expertise, we have built a dual advantage of professional qualifications and a global presence. Our business covers more than 100 countries and regions across Asia, Europe, the Americas, Africa, and Oceania. We are certified under the ISO management system and hold CE product certifications. Our main product lines include six major series—electric hoists, electric winches, gantry cranes, bridge cranes, marine cranes, and portal cranes—comprising nearly 100 different models.
