Crane wheels are critical load-bearing components used on overhead cranes, gantry cranes, port cranes, and other industrial lifting equipment. They ensure smooth travel along rails, transfer loads safely to the supporting structure, and directly influence the crane’s performance, safety, and lifespan. Choosing the right crane wheel is essential for minimizing wear, reducing maintenance costs, and ensuring stable operation in demanding industrial environments.
 |
 |

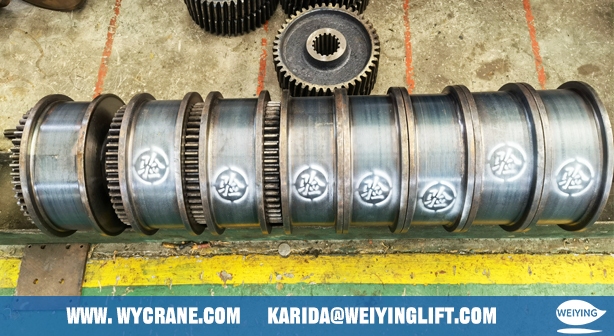

A crane wheel is a specially engineered wheel installed on the end trucks of overhead cranes, gantry cranes, and transfer carts. It supports the full weight of the crane and load, allowing horizontal movement along rails.
Crane wheels are typically made of high-strength alloy steel such as 42CrMo, 65Mn, or ZG430640, and are heat-treated for superior hardness, toughness, and wear resistance.
Support the crane’s dead weight and lifted load
Ensure smooth and accurate travel on runway beams or ground rails
Transmit motion from the drive mechanism to the entire crane
Maintain alignment and prevent derailment
Reduce vibration and operational noise
A high-quality wheel significantly extends the lifespan of the crane and reduces maintenance downtime.
Although designs vary by manufacturer, a standard crane wheel assembly includes the following parts:
The main load-bearing circular part made of forged or cast alloy steel.
The outer surface that contacts the rail. It must have high hardness (HB320–380) and excellent wear resistance.
Lateral projection on one or both sides of the wheel.
Function: Prevents the crane from slipping off the rail.
Flanges can be:
Single-flange
Double-flange
Flangeless (used on some gantry crane bogies)
Connects the wheel to the end carriage and transmits torque.
Ensures smooth rotation and supports radial and axial forces.
Includes wheel, shaft, bearings, end caps, and housing—ready for crane installation.
The crane wheel operates based on rolling friction and mechanical transmission:
The motor and reducer drive the wheel axle.
Torque is transmitted to the wheel body, causing the wheel to rotate.
The wheel runs along the steel rail, converting rotational motion into linear travel.
The flange limits lateral movement and maintains the crane’s tracking alignment.
Load pressure distributes through the wheel to the rail and support structure.
Crane wheels must withstand:
High radial load
Impact load
Fatigue stress
Long-term wear
Therefore, manufacturing accuracy, material quality, and heat treatment are essential.
Crane wheels vary by design, installation location, and function. Below are the most commonly used types:
Single-Flange Wheel:Most widely used for overhead cranes and gantry cranes.
Double-Flange Wheel:Provides stronger anti-derail protection. Suitable for high-precision traveling.
Flangeless Wheel:Common on trolley end carriages and some rail-guided carts.
Driving Wheel:Connected to motors; provides traction and movement.
Driven Wheel:Rotates passively; supports the crane’s weight.

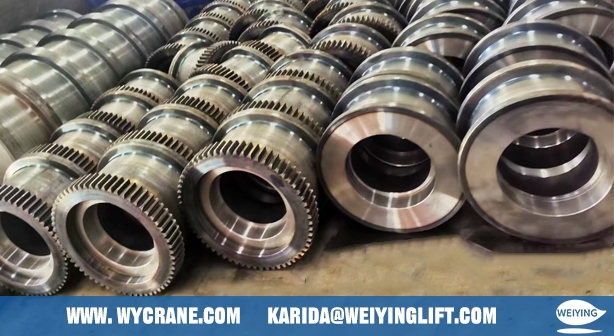

Forged Crane Wheel:High strength, impact resistance—best for heavy-duty cranes.
Cast Crane Wheel:Lower cost; suitable for lighter-duty applications.
Overhead Crane Wheels:High wear resistance, used on runway beams.
Gantry Crane Wheels:Larger diameter, resistant to outdoor environments.
Port Crane Wheels:Designed for high fatigue loads and long travel distances.
Transfer Cart Wheels:Can be rail-type or polyurethane type.
Crane wheels are used across diverse industries where lifting and material handling are required.
Manufacturing workshops
Steel plants
Paper mills
Power plants
Mining industry
Shipyards and ports
Warehouses and logistics centers
Construction sites
Heavy equipment assembly lines
Any system that uses overhead or gantry cranes will require durable and precisely machined crane wheels.
Choosing the right crane wheel is essential for ensuring long service life and safe operation. Consider the following criteria:
Wheel diameter, width, and material must match the crane’s rated load, working class, and duty cycle.
Recommended materials:
42CrMo
65Mn
ZG430640
Heat treatment options:
Quenching + tempering
High-frequency quenching
Induction hardening
Ensure the surface hardness meets design requirements.
Wheel tread and flange must match:
Rail head width
Inclination angle
Crane runway precision
Outdoor cranes need better corrosion resistance.
High-temperature industries require heat-resistant materials.
Choose wheels that match the:
Shaft size
Bearing type
Gear ratio
Mounting method
Higher duty cranes (A5–A7) require stronger wheels with hardened surfaces.
Some projects require:
Non-standard diameters
Special flange shapes
Integrated wheel sets
Special coatings (anti-corrosion, anti-slip)
Wheel damage is one of the most frequent crane maintenance problems. Understanding failure causes helps extend service life.
Often caused by:
Rail misalignment
Excessive lateral forces
Uneven wheel load distribution
Resulting from:
Hard rail surface
High working frequency
Poor lubrication
Caused by:
Overloading
Material defects
Insufficient heat treatment
Long-term fatigue stress
Due to surface fatigue and repeated stress cycles.
Symptoms include:
Uneven flange wear
Vibration
Noise
Usually caused by installation errors.
Proper maintenance minimizes downtime and failure rates.
Inspect:
Wheel tread wear
Flange thickness
Bearing temperature
Cracks or deformation
Rail alignment
Ensure proper lubrication of:
Wheel bearings
Drive shafts
Use high-quality grease suitable for the working temperature.
Maintain:
Rail levelness
Straightness tolerance
Rail joint smoothness
This significantly reduces flange wear.
Avoid uneven load distribution by replacing both wheels on the same axle.
For moderate wear, build-up welding can extend wheel life.
Abnormal vibration can indicate:
Bearing failure
Skewed operation
Uneven load distribution
Safe operation of crane wheels ensures stable crane movement and prevents derailment accidents.
Exceeding rated capacity accelerates wheel wear and increases risk.
Remove obstacles, debris, ice, or water that may affect wheel tracking.
Smooth acceleration and deceleration reduce wheel stress.
Before each shift, check:
Wheel appearance
Rail condition
End-stop condition
Lateral misalignment can cause flange breakage and derailment.
Only trained personnel should drive cranes.
Misoperation shortens wheel lifespan.
Crane wheels are essential components that directly impact the performance, safety, and lifespan of overhead cranes, gantry cranes, and industrial lifting systems. By understanding their structure, working principles, types, applications, and failure modes, buyers and operators can make informed choices and ensure long-term stable operation.
For heavy-duty uses—such as steel plants, ports, mining, and high-frequency production lines—selecting high-quality forged wheels with proper heat treatment is crucial.
Implementing regular maintenance, rail alignment checks, and lubrication ensures your crane system runs smoothly, safely, and cost-effectively.
High-strength alloy steels such as 42CrMo, 65Mn, ZG430640, and Q345B are commonly used. These materials offer excellent hardness, wear resistance, and fatigue strength.
For most industrial cranes, visual inspection should be carried out monthly, with a full mechanical inspection every 6–12 months depending on crane duty.
es. Moderate wear can often be repaired through hardfacing (build-up welding). Severe cracking, excessive flange wear, or major deformation usually requires full replacement.
