Benefits At A Glance

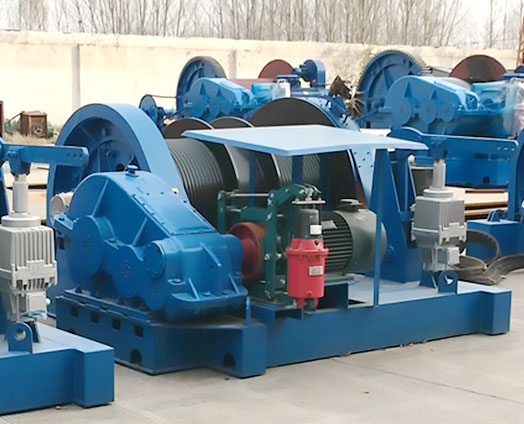

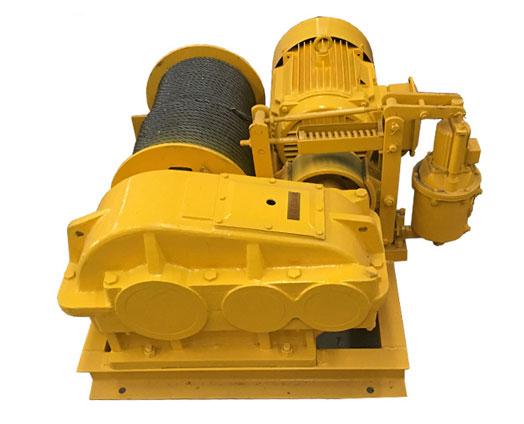

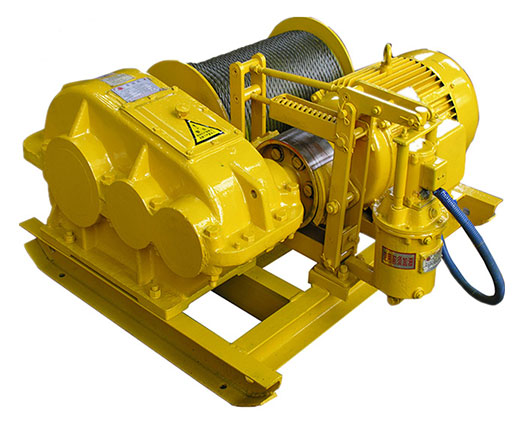

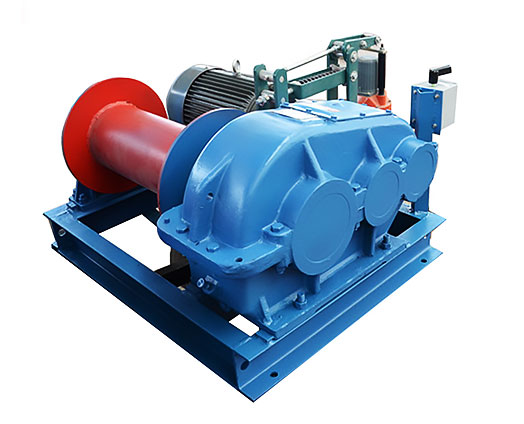

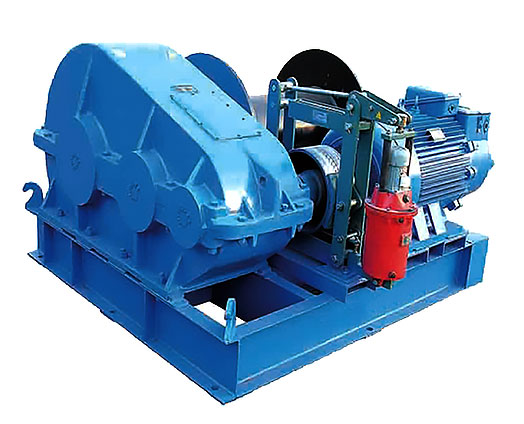

JK Model Electric winch

If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.

Main Features

-Pulling speed is fast.

-Lifting vertically or pulling horizontally.

-Larger size, weight is over 150kg, difficult to transport, so it is usually fixed in place.

-Pure copper core motor has large power, works powerfully.

-Rolling drum has large wire rope capacity

-Hydraulic brake stops braking quickly, minimizes brake slip.

-Gear box is made by high quality steel, high impact resistance.

-Controlled by electrical cabinets to help the machine operate more stably.

-High quality alloy steel hook is not susceptible to chipping, breaking or deforming.

Technical Data

Loading capacity: 0.5~60 t

Rope capacity: 20~500 m

Working speed: 20~35 m/min; (single speed and dual speed)

Power supply: 220-690V, 50/60HZ, 3Phase


There are JK electronic control high speed winch.

JK model: the winch is mainly used for material lifting, heavy weights traction. It is also used for crane as the main hoist. It is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction, mine and factory.

Model Rated tension (kn) Rated speed Rope capacity (m) Wire rope diameter motor model Motor power (kw) Dimensions (mm) Weight (kg)
JK1 10 22 100 9.3 Y112M-4 4 620*701*417 300
JK1.6 16 24 120 12.5 Y132S-4 5.5 945*996*570 500
JK2 20 24 120 13 Y132M-4 7.5 945*996*570 550
JK3.2 32 25 200 15.5 YZR180L-6 15 1325*1335*840 1200
JK5 50 30 200 21.5 YZR255M-6 30 1900*1620*985 2400
JK8 80 25 250 26 YZR280S-8 45 1533*1985*1045 3500
JK10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100

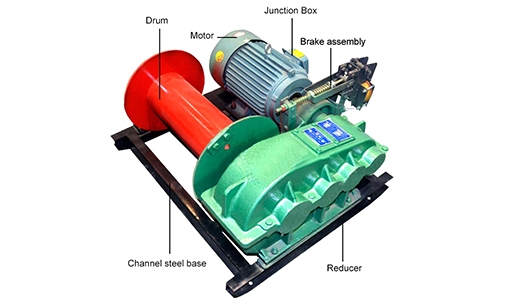

Sufficient solid copper motor

The service life can reach

1 million times High protection

level ,Support double speed


Precision casting, protect

internal parts, higher work

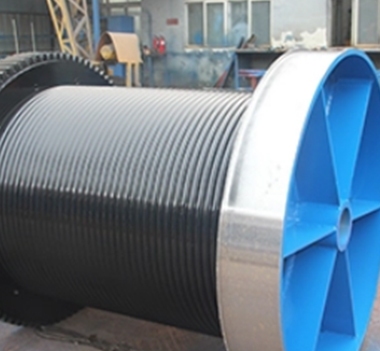

Forged with high-quality aloy

steel material, special thickened

steel wire rope drum, greater

load-bearing capacity and safer use

Channel steel base

The base is thickened and

reinforced, work more stably,

safe and stable, and solve

the trouble of shaking

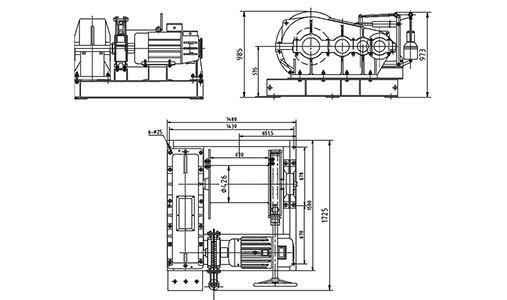

The Structure Sketch

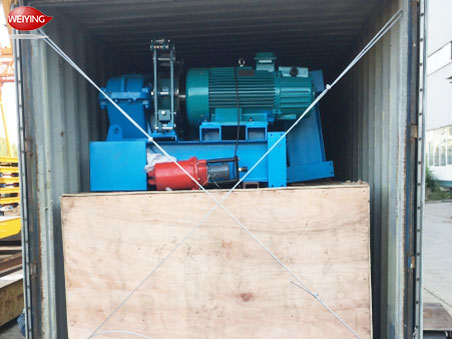

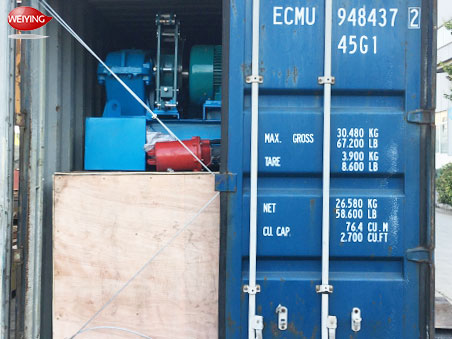

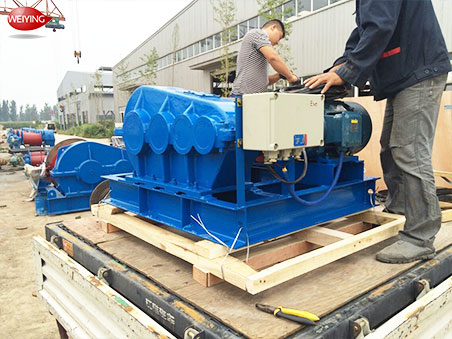

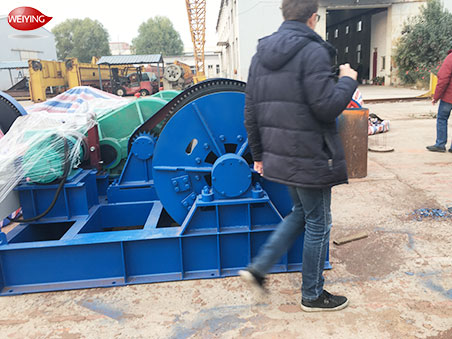

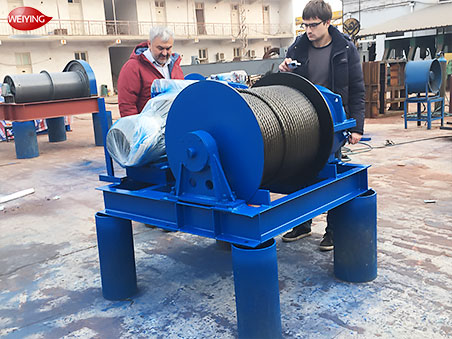

Product delivery
