Benefits At A Glance

1. Load capacity : 25- 800 tons

2. Can be customized as per boat size

3. “U” type steel structure

4. Control Methods: Cabin control / remote control

Technical Data

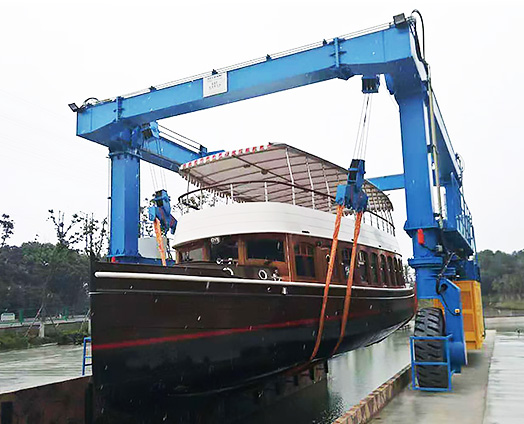

Boat traveling crane is a kind of dedicated hoisting machinery which is used to up and down water work of boat and level transportation ,main used to ports ,shipyard and coast etc. Crane traveling mechanism adopt to structure of wheels and can achieve 360° turn and Ackerman turned and run diagonally ,Competed machine is controlled by hydraulic and electrical equipment Compact construction, safe and reliable .

Rated load capacity

100 ton

150 ton

200 ton

300 ton

ground pressure (kg/cm2)

11.5

11

11.5

6.5

Grade ability

2%

4%

4%

4%

lifting speed - full load (m/min)

0~2

0~1

0~2

0~1

lifting speed -non load (m/min)

0~5

0~4

0~3

0~3

run speed ,full load (m/min)

0~20

0~20

0~20

0~20

running speed , non load (m/min)

0~35

0~35

0~35

0~35

working Ambient temperature

-20°C~+50°C

-20°C~+50°C

-20°C~+50°C

-20°C~+50°C

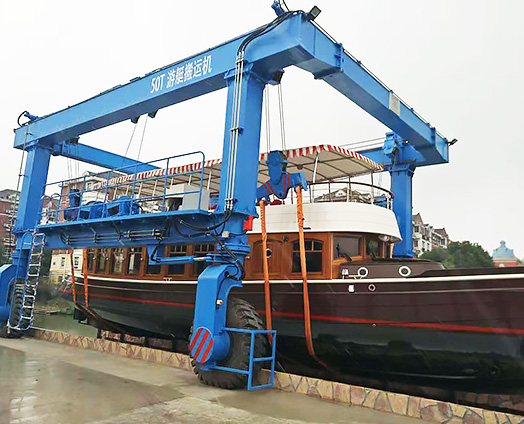

Boat lift crane can be customized from 50 tons to 800 tons



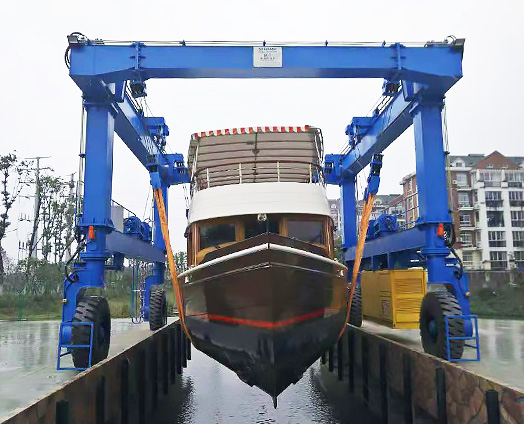

1.Crane Frame



The crane frame with “U “ type steel structure.

2.Lifting Mechanism ( winch)

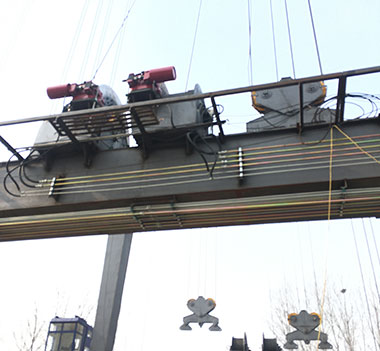

Lifting mechanism adopts the load-sensitive hydraulic system , the lifting point distance can be adjusted to keep the simultaneous lifting of multi-lift points and output power according to the load conditions , so that the energy consumption of the whole machine is reduced.

3.Electrical system



Electrical system used PLC frequency adjustment which can easily control the lifting and traveling mechanism.

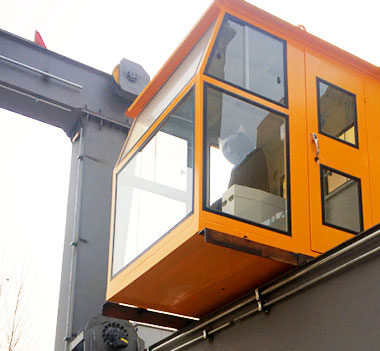

4.Cabin control



The high-strength frame is welded by high quality profile.and the high-quality cold rolling plate is finished by the CNC machine.

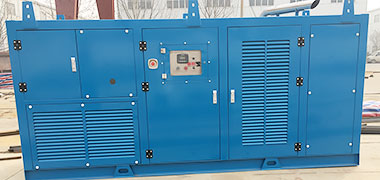

5.Diesel generator with mute box



It adopts full hydraulic driving , build-in diesel generator provide power good liquidity

Brand : Cummins brand

6.Firm belt

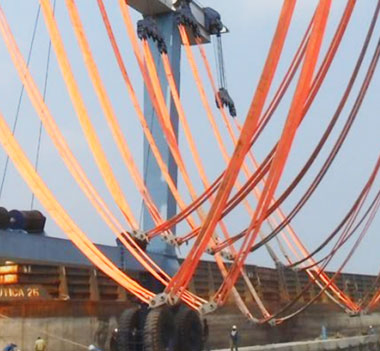

Low cost on the daily operation , it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting .

7.Traveling mechanism

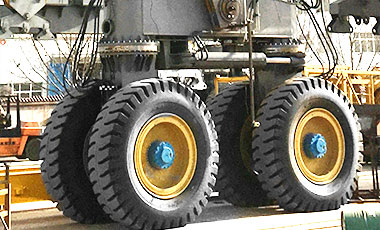

It can realize 12 azimuth walking functions such as straight line , oblique line , transverse line , in-place rotation and Ackerman turning etc. to meet the requirements of different working conditions , and it have 4% climbing ability .

Boat Hoist Travel Lift crane includes the following items:

---- Door frame

---- Lifting mechanism

---- Lifting point adjusting mechanism

---- Crane traveling mechanism

---- Crane steering mechanism

---- Electrical control system

---- Power and hydraulic system

---- Safety protection device etc
