As a widely used lifting and traction equipment in multiple industries, electric winches have become an indispensable tool in modern industrial and engineering fields due to their high efficiency, convenience, and reliability. This article will comprehensively introduce the definition, working principle, core components, classification methods, application scenarios, and technological development trends of electric winches, helping readers to gain a deeper understanding of their application value and technological advantages in different fields.
An electric winch is a lightweight and small lifting equipment that uses an electric motor as its power source to lift and pull heavy objects by winding steel wire ropes or chains around a drum. Its core functions include vertical lifting, horizontal towing, and tilt angle operations, and are widely used in various fields such as construction, mining, ports, ships, and rescue. Compared to traditional manual or hydraulic winches, electric winches have the characteristics of low energy consumption, convenient operation, and strong environmental friendliness, especially in terms of noise control and emission reduction.
Vertical lifting: Electric winches can lift heavy objects from low to high, such as lifting building materials on construction sites, lifting ore and equipment in mines, etc.
Horizontal towing: With the traction of steel wire ropes, electric winches can tow heavy objects in the horizontal direction, suitable for scenarios such as port cargo handling and mining truck towing.
Tilt angle operation: In some scenarios that require inclined lifting or towing, electric winches can also be flexibly applied, such as material transportation on slopes.
Electric winches can be classified according to different standards to meet the needs of different application scenarios.
Fixed electric winch: suitable for long-term stable working environments, such as fixed lifting points in factories, mines, and other places. Its advantages are firm installation, stable operation, and suitable for long-term continuous operation.
Mobile electric winch: easy to deploy flexibly, can move between different positions, suitable for workplaces that require work at multiple locations, such as material handling on construction sites.
Marine electric winch: It has waterproof and anti-corrosion properties to cope with harsh conditions such as humidity and salt spray in marine environments, and is commonly used for ship anchoring, mooring, and cargo loading and unloading operations.
Small electric winch: suitable for light load operations, usually used in homes, small workshops and other places.
Medium sized electric winch: suitable for medium load operations and widely used in conventional operations in industries such as construction and mining.
Large electric winch: suitable for heavy-duty operations, capable of lifting or towing heavy objects, commonly used in large-scale engineering construction and mining scenarios.
Manual control of electric winch: Control the start, stop, and speed adjustment of the winch through manual operation buttons or handles, suitable for simple operation scenarios.
Remote control of electric winch: Operated through wireless or wired remote control, it improves the convenience and flexibility of operation, and operators can control the winch within a certain distance.
Automated control electric winch: precise operation and safety monitoring are achieved through an intelligent system, which can automatically adjust speed, tension, and position, suitable for high-precision and high-efficiency work environments.
Crane winch: mainly used for vertical lifting of heavy objects, such as lifting building materials on construction sites, lifting equipment in factories, etc.
Traction winch: mainly used for pulling heavy objects horizontally or obliquely, such as pulling mining cars in mines, pulling ships at docks, etc.
Loading and unloading winch: specifically used for cargo loading and unloading operations, such as quickly loading and unloading goods in warehouses, ports, and other places, to improve loading and unloading efficiency.

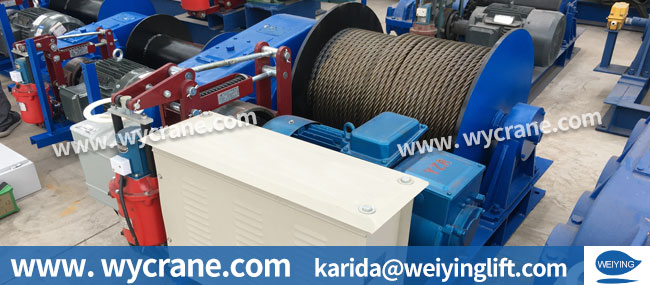

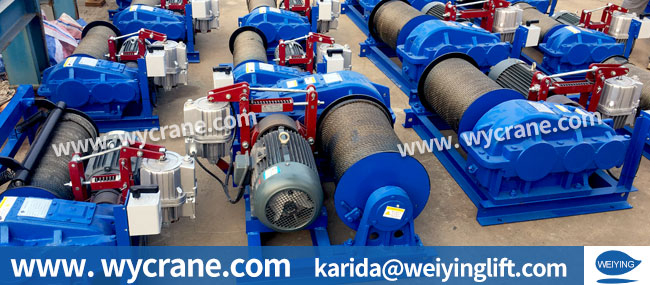

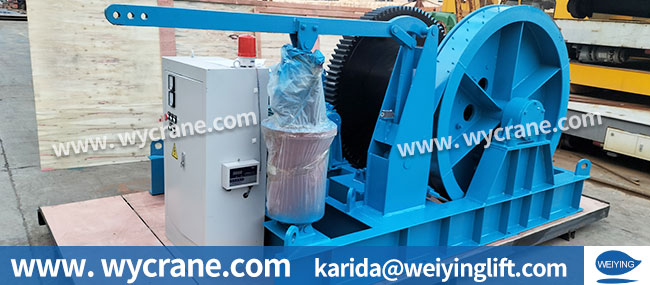

The electric winch consists of the following main components:
Electric motor: provides power, usually using high-efficiency and energy-saving permanent magnet synchronous motors or DC motors. The power range of the electric motor is generally between 1.5-200kW, which can provide stable and strong power output for the winch.
Reducer: Reduce motor speed and increase torque, commonly using gear reduction or planetary reduction structures. The function of a reducer is to convert the high-speed rotation of an electric motor into low-speed, high torque mechanical energy, thereby driving the drum to rotate.
Drum: The core component for winding steel wire rope, with a surface designed rope groove to evenly distribute the cables and prevent tangled ropes. The diameter and rope capacity of the drum directly affect the load capacity of the winch.
Braking device: Ensure safety during emergency stop or load hovering, commonly with a belt brake system or electromagnetic brake. The braking device immediately activates after the stop command is issued, locking the position of the drum to prevent heavy objects from sliding or moving due to inertia or gravity.
Control system: integrates functions such as startup, speed regulation, and limit protection. High end models support remote monitoring and fault diagnosis. The control system can accurately control the speed, steering, and brake action of the electric motor according to different job requirements, achieving intelligent operation of the electric winch.
The working principle of an electric winch is based on the conversion of electrical energy from an electric motor into mechanical energy. The specific steps are as follows:
Power input: After the electric motor starts, electrical energy is converted into mechanical energy to drive the transmission shaft to rotate.
Torque transmission: Convert high-speed low torque into low-speed high torque through a reducer. For example, the reduction ratio of three-stage closed gear transmission can reach 166:1, significantly improving traction.
Winding motion: The output shaft of the reducer drives the drum to rotate, and the steel wire rope is rolled up or released accordingly. Some winches use a planetary gear system combined with a lateral movement mechanism to ensure even distribution of wire ropes and avoid tangling.
Load control: The brake immediately activates upon receiving a stop command to lock the position of the drum; The control system monitors the load status in real-time through sensors to prevent overloading or wire rope slack.
Traction and speed: Large electric winches can have a traction force of several tons and a typical retraction speed of 10-50 meters per minute. The choice of traction and speed depends on the specific application scenario and job requirements.
Safety protection: equipped with multiple safety mechanisms such as overload protection, limit switches, emergency braking, etc. These safety devices can effectively prevent equipment from malfunctioning or accidents during operation, ensuring the safety of operators and equipment.
Energy efficiency ratio: After adopting variable frequency speed regulation technology, energy consumption is reduced by more than 30% compared to traditional models. Variable frequency speed regulation technology can not only improve the operational efficiency of equipment, but also reduce energy consumption and lower operating costs.
Construction site: used for high-rise building material hoisting and scaffolding construction, significantly improving construction efficiency. For example, after adopting electric winches in a super high-rise project, the daily lifting capacity increased by 40%.、
Mining: Improve ore, waste rock, and equipment, with durable explosion-proof design to adapt to complex underground environments. Electric winches used in mines usually adopt special design and manufacturing processes to adapt to harsh working conditions.
Port logistics: container loading and unloading, and ship mooring. The 76 meter steel cable model can shorten the berthing time by 30% in large cargo ship operations. The application of electric winches in ports not only improves loading and unloading efficiency, but also reduces the berthing time of ships and enhances the operational efficiency of ports.
Maritime rescue: The Type I electric winch carried by the helicopter can lift the wounded in hovering state with a swing angle of ± 60 °, adapting to harsh sea conditions. The application of electric winches in maritime rescue provides efficient and reliable equipment support for rescue work.
Scientific research exploration: The ocean magnetometer is equipped with a dedicated winch, and a 700 meter cable length is used in conjunction with a stepper cable cutter to achieve precise deep-sea exploration. The application of electric winches in marine scientific research and exploration provides important technical support for deep-sea exploration.
Strong power: As a power source, the electric motor can provide stable and large power output, making the electric winch have strong lifting and traction capabilities, which can meet the needs of various heavy object handling.
Easy to operate: Through the control system, operators can easily control the operation status of the electric winch, such as start, stop, speed regulation, direction change, etc., greatly reducing the difficulty of operation and improving work efficiency.
High efficiency: The transmission system of the electric winch is designed reasonably, with high energy conversion efficiency, which can complete the lifting and traction tasks of heavy objects in a short time, reduce operation time, and improve production efficiency.
Accurate control: Modern electric winches are equipped with advanced control systems that can achieve precise control of winch operating speed, position, tension and other parameters, meeting the requirements of some scenarios with high operational accuracy, such as the lifting of precision equipment.
Strong adaptability: Electric winches can be customized according to different usage scenarios and operational requirements, such as changing the capacity of the drum, the specifications of the wire rope, the power of the motor, etc., so that they can adapt to various complex working environments and different heavy lifting tasks.
Strong power: As a power source, the electric motor can provide stable and large power output, making the electric winch have strong lifting and traction capabilities, which can meet the needs of various heavy object handling, whether it is large mechanical equipment or a large amount of building materials, it can easily cope with them.
Easy to operate: Through the control system, operators can easily control the operation status of the electric winch, such as start, stop, speed regulation, direction change, etc., greatly reducing the difficulty of operation and improving work efficiency. Even untrained personnel can quickly master basic operations and get into work quickly.
High efficiency: The transmission system of the electric winch is designed reasonably, with high energy conversion efficiency, which can complete the lifting and traction tasks of heavy objects in a short time, reduce operation time, and improve production efficiency. Compared with traditional manual or hydraulic winches, electric winches can save a lot of time and labor costs under the same workload.
Accurate control: Modern electric winches are equipped with advanced control systems such as PLC or variable frequency drive technology, which can achieve precise control of winch operating speed, position, tension and other parameters, meeting the requirements of some scenarios with high precision requirements, such as precision equipment lifting, high-precision material handling in industrial production processes, etc., ensuring the accuracy and reliability of operations.
Strong adaptability: Electric winches can be customized according to different usage scenarios and operational requirements, such as changing the capacity of the drum, the specifications of the wire rope, the power of the motor, etc., so that they can adapt to various complex working environments and different heavy lifting tasks. Whether indoors or outdoors, in high or low temperature environments, the electric winch can operate normally and play its due role through reasonable configuration and design.
With the continuous advancement of technology, electric winches are also developing towards intelligence, efficiency, and environmental protection. In the future, electric winches will pay more attention to the deep integration with automation technology and Internet of Things technology, realizing remote monitoring, fault diagnosis, intelligent scheduling and other functions, further improving the operational efficiency and management level of equipment. At the same time, the application of new materials and the research and development of energy-saving technologies will make electric winches more lightweight and environmentally friendly, reduce energy consumption and operating costs, and provide stronger support for the sustainable development of various industries.
