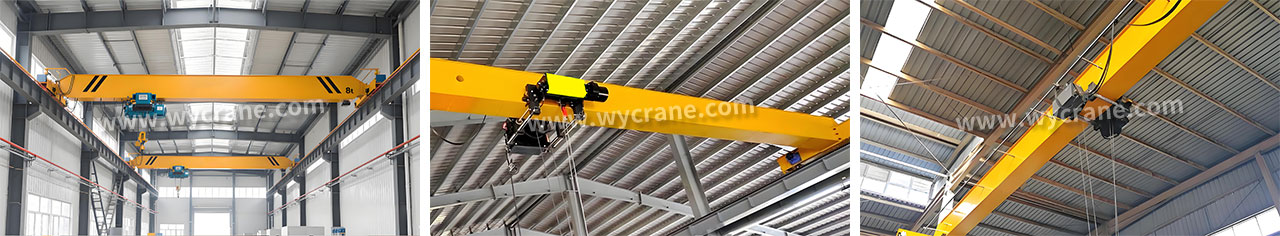

• Essence of “European-Style”: Signifies not origin labeling, but a design strictly adhering to European mechanical design standards (e.g., FEM, DIN, EN 13001 / EN 12077 series).
• Core Design Philosophy: Efficiency, Energy Saving, Compactness, Safety.
• Core Value Manifestations:
◦ Lightweight: Main girder weight 15%–25% lighter than comparable LDi types, significantly reducing wheel load (e.g., factory rail beam load typically reduced from 25 kN/m to 20 kN/m).
◦ Modular: Combines four core modules – End carriages, Triple-unit drives, Electric hoists, Electrical packages – in a “building block” fashion, dramatically shortening delivery times (typically 4-6 weeks).
◦ Total Cost of Ownership (TCO) Optimization: Although initial purchase cost is typically 20%-30% higher, high reliability and low maintenance lead to >25% lower TCO over 15 years.
• Structure: Partial rail box girder or reinforced H-beam (optimized height-to-width ratio 1.2–1.5).
• Material & Process:
◦ Steel: Q355B or higher, passing -20°C low-temperature impact toughness tests.
◦ Manufacturing: CNC plasma cutting → Robot CO₂ welding → Vibratory stress relief → Shot blasting to Sa2.5 standard → ≥80μm epoxy zinc-rich primer.
• Key Performance: Under full load, main girder deflection is strictly controlled ≤ L/1000 (e.g., 18m span ≤ 18mm).

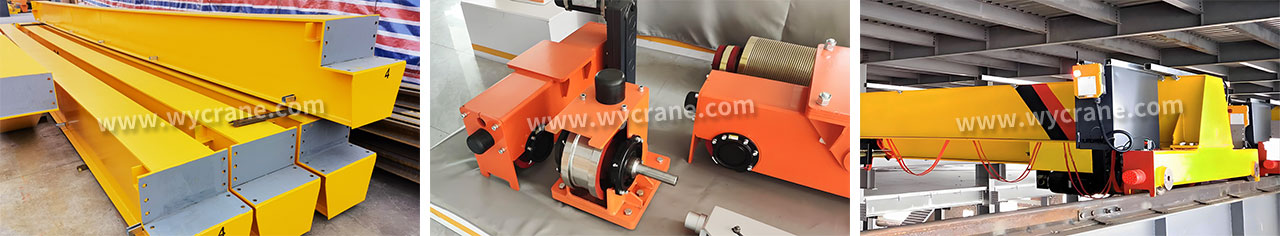

• End beam: Folded box structure, connected to main girder with high-strength bolts and precision locating pins (±1mm tolerance).
• Triple-unit Drive (Core Unit):
◦ Highly integrates motor, hardened gearbox, and normally closed disc brake.
◦ Transmission efficiency ≥95%.
• Horizontal Guide Wheels: Effectively prevent rail gnawing during travel, significantly extending wheel life (~40%).

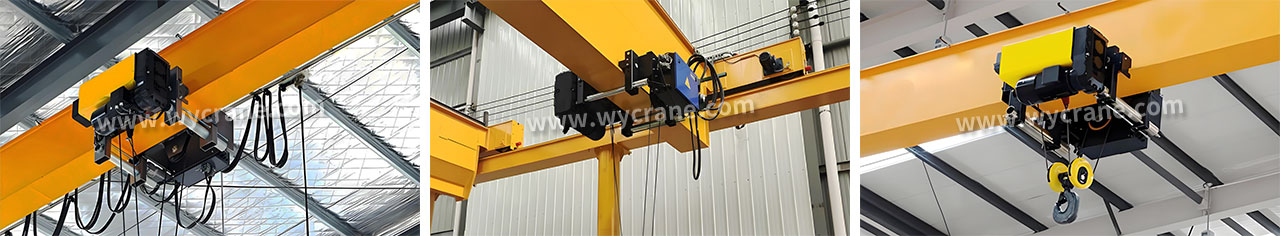

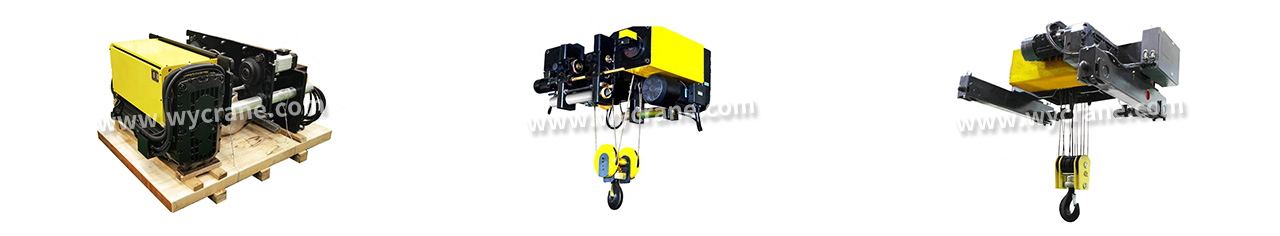

• Core Features: Fully variable frequency drive, dual brakes (main brake + safety brake), Class F insulation, IP55 protection.
• Key Components:
◦ Galvanized anti-rotation wire rope, safety factor ≥5.
◦ Maintenance-free gearbox, designed lubricant life ≥10,000 hours.
• Core Features: Both utilize VFD stepless speed control (Speed range: 1–30 m/min), minimal starting impulse (<0.3 g).
• Running Gear: Forged wheels, tread hardness HRC55–60 ensures wear resistance.
• Control Core: PLC (Programmable Logic Controller) + VFD + Contactor coordination.
• Safety Features (Standard):
◦ Overload protection (cut-off at 105% rated load)
◦ Dual-stage lift height limiter
◦ Crane & Trolley travel limiters
◦ Emergency stop buttons
◦ Audible/visual alarms
• Power Supply: IP54-rated conductor bars (busbars) or festoon cable systems. Includes wireless remote control with an effective range up to 100m.
• Method: Optimized height-to-width ratio (H/W=1.2-1.5), topology optimization, and FEA simulation for precise material distribution.
• Result: For a 10t×16m crane, European-type main girder weight only ~2.8 tons (Typical LDi: ~3.3 tons).
• Manufacturing Assurance: 100% UT (Ultrasonic Testing) on critical welds, defects strictly controlled to EN25817 Level B or higher.
• Component Lifespan:
◦ Motors designed for ≥8000 hours continuous operation life.
◦ Bearing lubrication intervals extended to 12 months (vs. LDi typical 6 months).
• Maintenance-Free Features: Lifting gearbox designed for permanent lubrication (no oil change required).
• Structural Strength: Safety factors meet stringent requirements: Static load ≥1.5, Fatigue ≥1.34.
• Emergency Braking: Power-off brake response time ≤0.5 seconds.
• Environmental Protection: Drive units and key components feature full protective covers, dust/rain guards, suitable for harsh environments like outdoors or dusty conditions.
• Rated Capacity: Standard range typically 1-16 tons (custom larger capacities available).
• Span (L): General range typically 5-25 meters.
• Lifting Speed: VFD stepless control, range 0.8–16 m/min.
• Travel Speed (Crane/Trolley): VFD stepless control, range 1–30 m/min.
• Duty Class: Covers A3 – A7 (A7 = High Utilization).
• Energy Efficiency: Total motor power 10%–15% lower than comparable LDi cranes.
• Design Life: 15–20 years.
• Design Philosophy & Key Advantages:
◦ European-style: Driven by light weight, modularity, compact space use, and precise positioning. Designed specifically for exceptional long-term operating economy (optimal TCO), high reliability, and minimal maintenance demands.
◦ LDi: Focuses on rugged durability, structural redundancy, and convenient maintenance. Offers high cost-effectiveness in initial investment, excellent component commonality, and easy field repairability.
• Main Girder Structure Advantages:
◦ European-style: Uses optimized partial rail box girders or reinforced H-beams (height-to-width ratio 1.2-1.5), achieving maximum material utilization efficiency.
◦ LDi: Features robust and reliable main girder structures, like classic solid-web I-beams or wide-flange H-beams.
• Overall Performance Highlights:
◦ European-style: Extremely lightweight overall structure (significantly reduced deadweight), resulting in low wheel loads, plus achieves ultra-high transmission efficiency (≥95%) and millimeter-level positioning accuracy.
◦ LDi: Robust and stable structure, provides reliable performance and moderate positioning accuracy.
• Core Mechanism Technology Advantages:
◦ European-style Lifting Mechanism: High-performance integrated VFD electric hoist with standard dual-brake (main + safety) redundancy and full VFD smooth control.
◦ LDi Lifting Mechanism: Utilizes mature electric hoist technology, typically employing practical and reliable split-unit arrangements.
◦ European-style Travel Drive: Highly integrated triple-unit drive (combining motor, gearbox, brake), embodying compactness and efficiency.
◦ LDi Travel Drive: Modular drive components (motor, gearbox, brake), facilitating independent maintenance and replacement.
• Electrical Control System Advantages:
◦ European-style: Features an advanced core control system (PLC + VFD) for high control flexibility and precision, natively supporting future automation/smart upgrades.
◦ LDi: Employs a mature, stable, and easy-to-understand contactor-relay control system, known for simple, direct maintenance and easy modifications.
• Applicability & Duty Class:
◦ European-style: Covers the broad range of A3 – A7 high-duty classes, providing strong support for intensive, high-frequency, long-duration continuous operations.
◦ LDi: Suitable for mainstream A2 – A5 duty classes, meeting various standard to medium-intensity industrial application needs.
• Maintenance Characteristic Advantages:
◦ European-style: Extended key component lubrication intervals (e.g., bearings: 12 months), lifting gearbox permanent lubrication (no change), minimizing maintenance intervention, maximizing equipment uptime.
◦ LDi: Utilizes strong scheduled maintenance with clear cycles, coupled with high component commonality and convenient field reparability to ensure continuous operation.
• Economics & Value Proposition:
◦ European-style: Through leading energy-saving technology (lower total motor power), very low ongoing maintenance costs, and a long design life (15-20 years), offers excellent long-term Return on Investment (ROI) and optimal Total Cost of Ownership (TCO).
◦ LDi: Provides highly competitive initial purchase cost, combined with rugged durability and low depreciation risk, demonstrating excellent early investment value in numerous projects.
• Core Advantages & Ideal Application Fit:
◦ European-style Core Strengths: Top-tier reliability & efficiency, minimal energy consumption & maintenance needs, unparalleled positioning accuracy, superior space utilization, exceptionally long service life, unmatched long-term economic benefit (lowest TCO).
▪ Ideal Scenarios: Space-constrained workshops, precision machining/assembly lines, automated environments requiring high frequency/intensity operation, projects focused on long-term ROI.
◦ LDi Core Strengths: Significant cost-effectiveness (initial investment), time-proven structural reliability, efficient & convenient field maintenance capability, excellent spare parts commonality, mature & reliable technology platform.
▪ Ideal Scenarios: Projects sensitive to initial budget, standard material handling tasks in traditional industrial settings, medium-duty cycle applications, situations emphasizing fast field repair response.
• Machining Workshops: Automatic loading/unloading of CNC machines (Load 3–10t, Duty A4).
• Automotive Assembly Lines: Precise handling of large components like engines, transmissions (Load 5–16t, Duty A5–A7).
• High-bay Warehouses: Automated pallet stacking/retrieval (Load 2–5t, Duty A4–A6).
• Large Equipment Repair Shops: Dismantling and assembly of heavy equipment like motors, gearboxes (Load 1–8t, Duty A3).
• Equipment: 8t × 18m European-style single girder cranes (2 units).
• Problems Solved:
◦ Met existing building structural load limits (required only 20 kN/m, no foundation reinforcement needed).
◦ Met demands for high-precision, high-frequency lifting.
• Operational Results (5 Years):
◦ Zero downtime due to failure.
◦ Equipment utilization rate as high as 95%.
◦ Average annual maintenance cost only ~CNY 5,000/unit (significantly lower than comparable LDi equipment’s ~CNY 12,000/unit).
• Basic Parameters: Clearly define Capacity (Q), Span (L), Duty Class (FEM standard).
• Environmental Requirements: Temperature range, humidity, need for explosion-proofing or special corrosion protection.
• Precision Requirements: If millimeter-level accuracy needed (e.g., ±3mm), servo VFD hoist must be specified.
• Track Requirements: Installation precision is critical. Track flatness ≤2 mm/1000 mm, levelness ≤L/1000.
• Erection: Utilize modularity for split-unit erection. Main structure installation achievable within 1 day.
• Commissioning Steps:
1. Empty run test (check all movements, limiters).
2. 125% Rated Load Static Test (verify structural strength/stability).
3. 110% Rated Load Dynamic Test (verify dynamic performance/safety).
• Qualifications: Operators must be certified/licensed.
• Daily Checks: Pre-operation inspection daily (focus: wire rope condition, brake effectiveness, limiter function).
• Operating Technique: “Inch first, then run”; test brake effect when load is 100–200mm off the ground.
• Prohibited Actions: Sideloading, overloading, personnel standing under suspended loads.
• Daily Checks:
◦ Check visible broken wires on wire rope (e.g., for Ø12mm rope, max 6 broken wires per strand).
◦ Check for abnormal noise, vibration.
• Monthly Checks:
◦ Re-torque critical fasteners (e.g., M20 bolt ~300 N·m).
◦ Check bearing temperature (temp rise ≤60°C).
• Annual Checks:
◦ Measure main girder deflection under static load (Should ≤L/1000).
◦ Measure wheel tread wear (Wear ≤5% of wheel diameter).
◦ Test motor/line insulation resistance (Requirement ≥0.5 MΩ).
The European-style single girder overhead crane represents a design philosophy rooted in advanced European standards. It employs systematic optimization to achieve core advantages: light weight, high efficiency and energy savings, compactness, reliability, and safety. Especially in scenarios with space constraints, high positioning accuracy requirements, frequent operation, and a focus on long-term return on investment, the European-style crane is the preferred solution.
