To ensure that our U.S. customer receives a fully reliable product with zero issues during installation and operation, we performed a complete powered test run before shipment. This pre-delivery inspection confirms that every mechanical, electrical, and hydraulic system works smoothly under actual operating conditions. Powder coating should be applied only after the equipment has been installed and tested to ensure it is in good working order. This will effectively prevent damage to the paint surface caused by the installation process.Below is a detailed overview of the equipment tested.

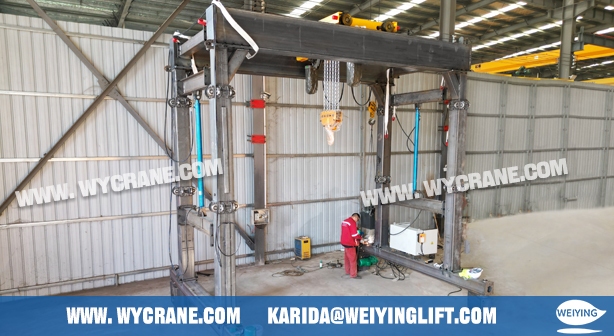

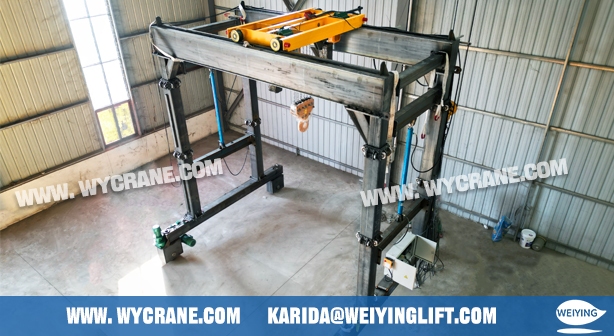

The equipment supplied this time includes a 15-ton double girder mobile gantry crane equipped with a hydraulic lifting mechanism, paired with a low-headroom fixed-type electric chain hoist. The solution is designed for flexible indoor and outdoor material handling, especially for facilities that require adjustable lifting heights and smooth, precise load control.
 |  |
The crane is engineered for stable and efficient lifting of heavy components up to 15,000 kg, meeting demanding industrial handling requirements.
A compact 5-meter span ensures excellent maneuverability in limited workspaces while maintaining structural stability under load.
The hydraulic lifting system allows the overall crane height to be adjusted between 4.5 m and 6.3 m.
This feature is ideal for:
Passing through gates or low-height areas
Adapting to different working environments
Achieving better lifting coverage and operational flexibility
The lifting range can be flexibly set from 3.2 m to 5 m, allowing operators to handle various materials at different heights without compromising safety.
Equipped with PU (polyurethane) solid tires, the gantry crane provides:
Smooth and quiet movement
Excellent floor protection
High load-bearing performance
Maintenance-free operation
These wheels are suitable for factories, warehouses, and outdoor flat surfaces.
The crane is built to A5 duty classification, supporting frequent lifting cycles and high working intensity.
The variable frequency drive (VFD) ensures:
Smooth acceleration and deceleration
Reduced mechanical impact
Better load stability
Enhanced safety and durability
To match the gantry crane, we provided a 15-ton low-headroom electric chain hoist, specifically designed to maximize lifting height under restricted ceiling conditions.
The hoist is capable of lifting heavy materials safely and efficiently during continuous operation.
A total lifting height of 5 meters meets various application needs in manufacturing, assembly, and warehouse operations.
The optimized lifting speed of 2.3 m/min delivers smooth, precise load handling and positioning.
With an M5 duty rating, the hoist is built for medium-to-heavy usage, ensuring long service life and reliable performance in demanding work environments.
Before shipment, our engineers performed a complete powered test run to ensure all systems meet international quality and safety standards. The inspection covered:
Electrical system performance under full load simulation
Hydraulic lifting stability and height adjustment precision
Hoist lifting, lowering, and braking performance
VFD smooth speed control and soft-start operation
Traveling system alignment and movement quality
Limit switches and safety protection devices
Noise and vibration levels
Overall structural integrity and weld quality
All systems passed the test and are now ready for final packing and delivery.
This customized 15-ton hydraulic mobile gantry crane with a low-headroom chain hoist is designed to offer high flexibility, strong lifting performance, and durable operation for our U.S. customer. By conducting a powered test run before shipment, we guarantee that the equipment will be ready for fast installation and safe operation upon arrival.
If you need a similar gantry crane solution—or a completely customized lifting system tailored to your site—feel free to contact us.
