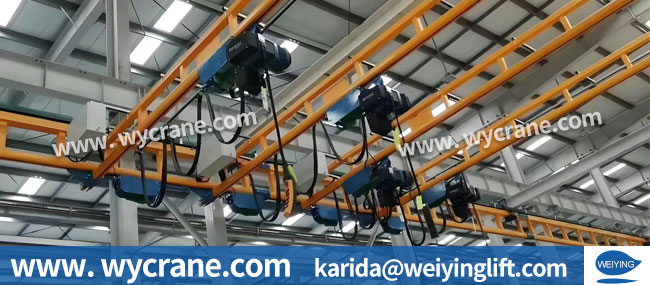

The Combined crane is mainly composed of a track system, electric hoist, control system, support structure, etc. The track system is the main part, generally made of steel or aluminum alloy materials. The electric hoist is installed on the track, and the lifting operation is realized through the operation of the control system. Combined cranes are also divided into flexible Combined cranes and rigid Combined cranes.

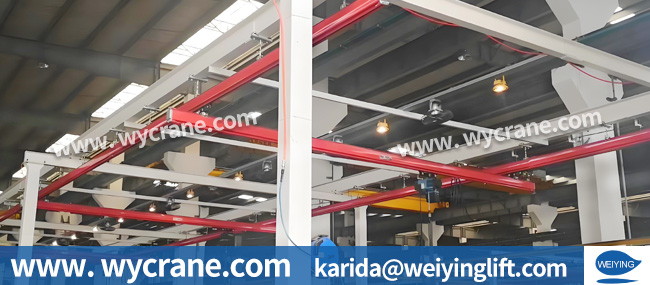

Combined Flexible Crane
Structure: It adopts a combination of track and suspension components. The connection between the I-beam and the track, and the connection between the track and the main beam are flexible. It allows the connected components to have displacement or rotation angle, featuring good flexibility and adaptability.
Support Center: Generally, it is 30 cm – 3 meters.
Main Beam Span: It is 8 meters when the capacity is 1 ton. It is a double beam when the capacity is 2 tons.
Walking Characteristics: The walking is not synchronized and it is not easy to position.
Steel Structure Requirements: An additional set of steel structure support is needed, and more steel structures are required for the suspended type.
Application Scenarios: It is suitable for workplaces with limited space but requiring flexible layout, such as small workshops and maintenance workshops. The crane layout can be adjusted at any time according to different production needs.

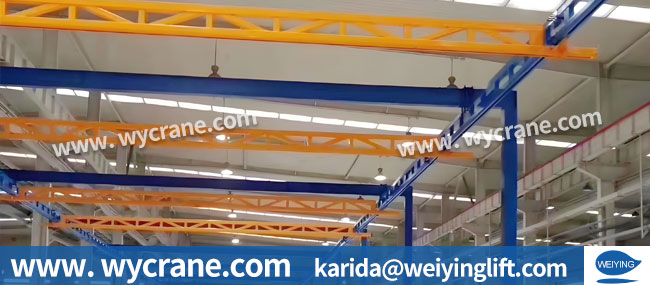

Combined Rigid Crane
Structure: It consists of a supporting steel structure, a fixed rail and a main beam. The connections between the I-beam and the rail, and between the rail and the main beam are both rigid. When one component is displaced or stressed, the connected components will not be displaced or relatively deformed relative to the first component. The track has high strength and good stability.
Support Center: For the self-standing type, it is generally 6 m – 9 m. For the suspended type, it is 1.6 m – 9 m.
Main Beam Span: The main beam can be up to 10 meters long.
Walking Characteristics: The left and right walking of the main beam is consistent and easy to position.
Steel Structure Requirements: It has a truly self-standing structure, and the long support center saves steel structures.
Application Scenarios: It is suitable for large factories and warehouses and is used to achieve the rapid handling of materials between different work areas. It is especially suitable for production lines such as machining and assembly.
If you have any requirements for Combined cranes, you can contact us at any time. With our professional technical team, we can accurately match your diverse working conditions, customize the most suitable solution for you, and ensure more efficient production.
